WALL SUPPORTS

Family Accessories - Electronic enclosures - Plastic

ELEMENTI DI FISSAGGIO

Description

WALL SUPPORTS

Details

ELEMENTI DI FISSAGGIO - dettaglio 1

Products

	Model	L (mm)	W (mm)	H (mm)	Color (Ral)	Material	MAX PCB L (mm)	MAX PCB W (mm)	Screws	Battery	Accessories	Drawings	Other

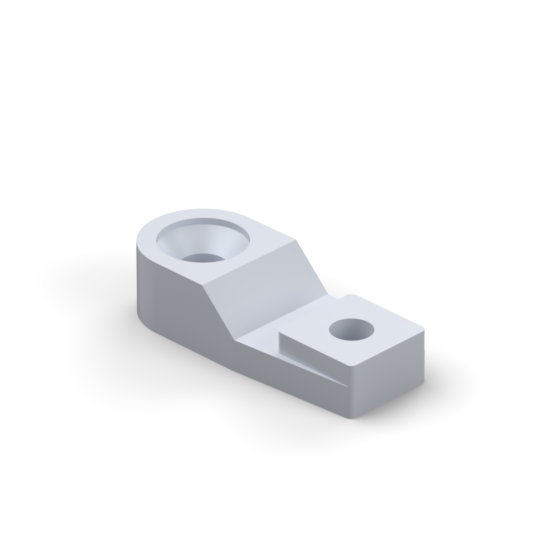

	MT1.5	22	9	5	9018	AG-ATY	-	-	-	-			View Color (Ral): 9018 Material: AG-ATY MAX PCB L (mm): - MAX PCB W (mm): - Screws: - Battery: - Accessories: Drawings: PDF DWG

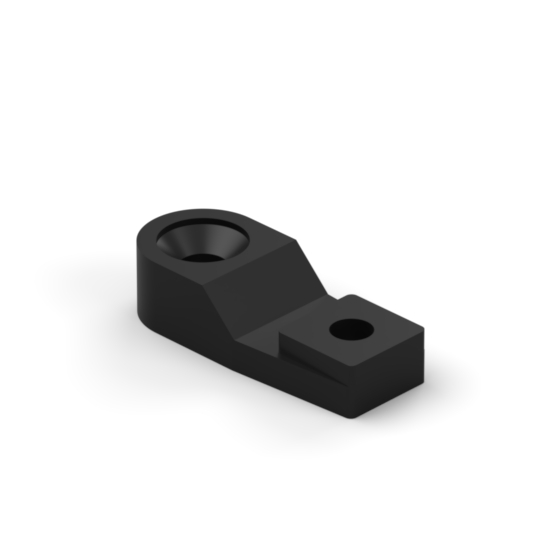

	MT1.9	22	9	5	9004	P2H-AT	-	-	-	-			View Color (Ral): 9004 Material: P2H-AT MAX PCB L (mm): - MAX PCB W (mm): - Screws: - Battery: - Accessories: Drawings: PDF DWG

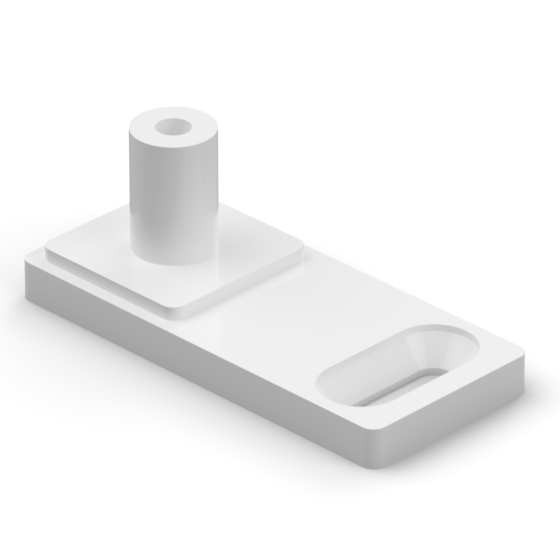

	MT2.7	34	15	13,8	9002	L320	-	-	-	-			View Color (Ral): 9002 Material: L320 MAX PCB L (mm): - MAX PCB W (mm): - Screws: - Battery: - Accessories: Drawings: PDF DWG

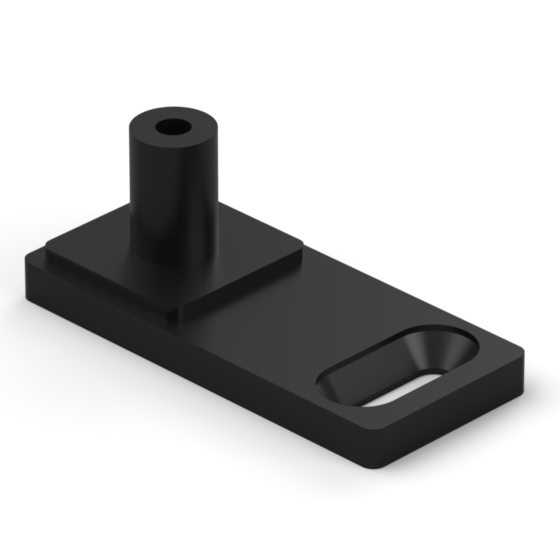

	MT2.9	34	15	13,8	9004	P2H-AT	-	-	-	-			View Color (Ral): 9004 Material: P2H-AT MAX PCB L (mm): - MAX PCB W (mm): - Screws: - Battery: - Accessories: Drawings: PDF DWG

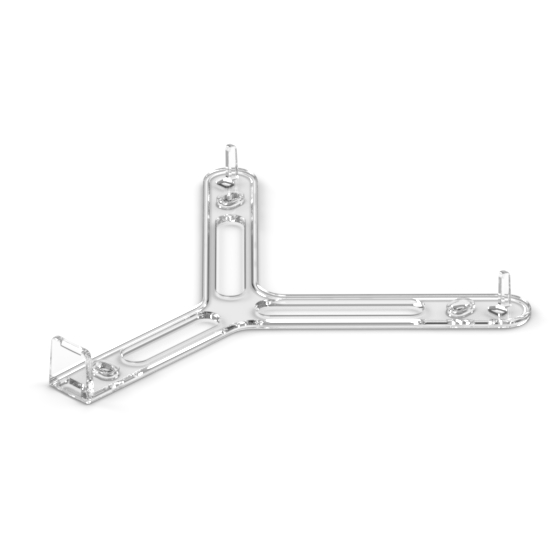

	MT4.0	157,7	156,3	20	-	P2H-AT	-	-	-	-			View Color (Ral): - Material: P2H-AT MAX PCB L (mm): - MAX PCB W (mm): - Screws: - Battery: - Accessories: Drawings: PDF DWG

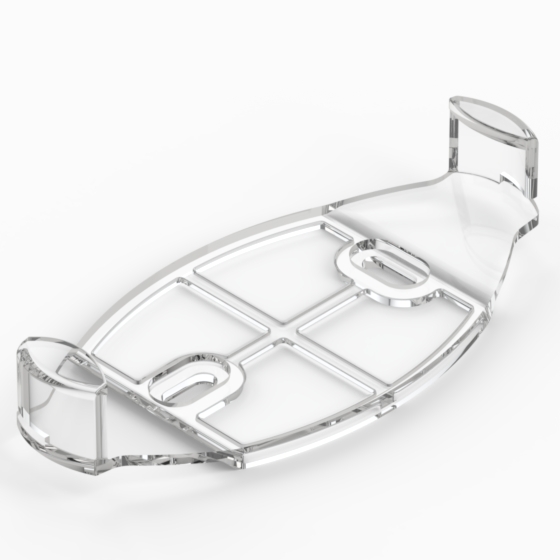

	MT5.0	99,5	47	21,2	-	P2H-AT	-	-	-	-			View Color (Ral): - Material: P2H-AT MAX PCB L (mm): - MAX PCB W (mm): - Screws: - Battery: - Accessories: Drawings: PDF DWG

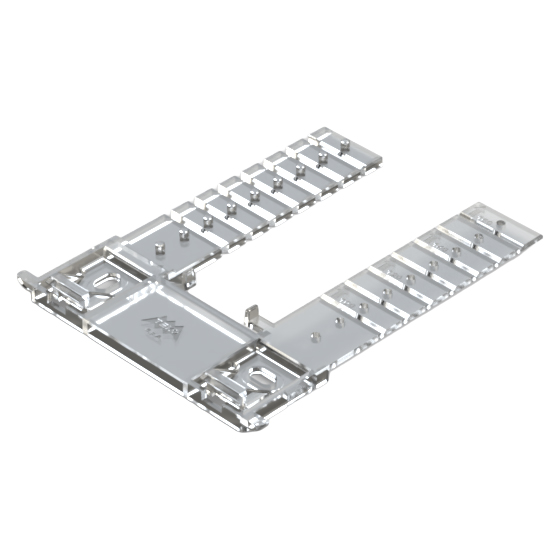

	MT7.0	166,5	102	8,7	-	P2H-AT	-	-	-	-			View Color (Ral): - Material: P2H-AT MAX PCB L (mm): - MAX PCB W (mm): - Screws: - Battery: - Accessories: Drawings: PDF DWG

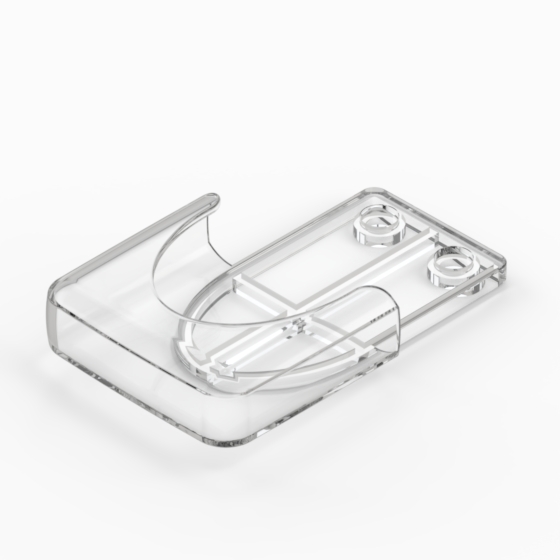

	MT8.0	68,6	42,75	16,5	-	P2H-AT	-	-	-	-			View Color (Ral): - Material: P2H-AT MAX PCB L (mm): - MAX PCB W (mm): - Screws: - Battery: - Accessories: Drawings: PDF DWG

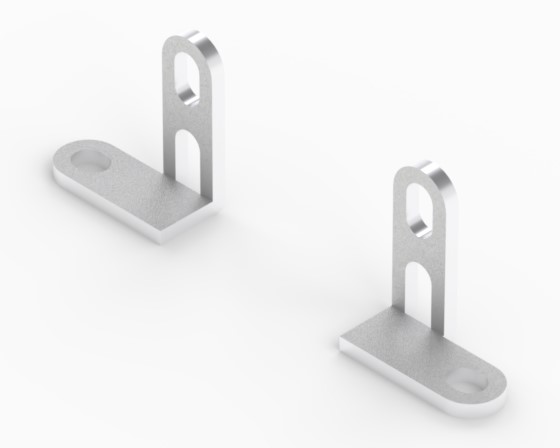

	MTAL.14 NEW	20	8	22,2	-	ALLOY 6060							View Color (Ral): - Material: ALLOY 6060 MAX PCB L (mm): MAX PCB W (mm): Screws: Battery: Accessories: Drawings: PDF DWG

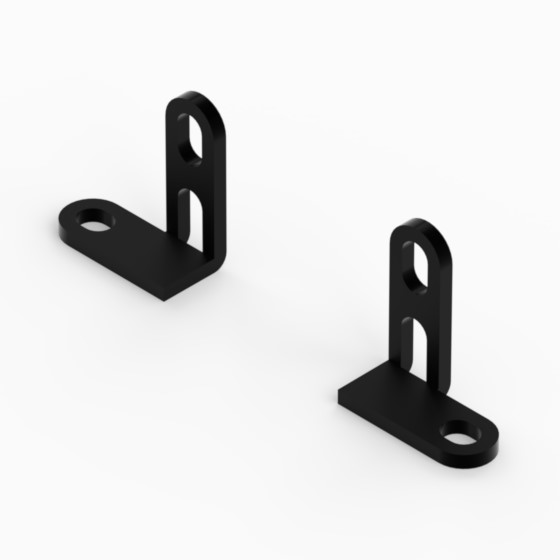

	MTAL.9 NEW	20	8	22,2	9004	ALLOY 6060							View Color (Ral): 9004 Material: ALLOY 6060 MAX PCB L (mm): MAX PCB W (mm): Screws: Battery: Accessories: Drawings: PDF DWG

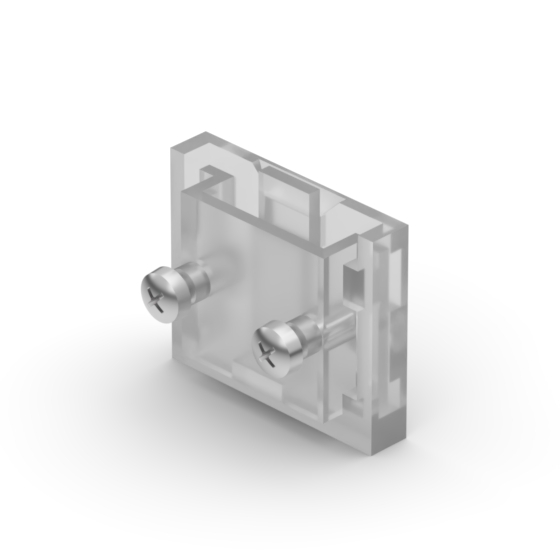

	MTU.0	28	24	7,6	-	P2H-AT	-	-	2	-			View Color (Ral): - Material: P2H-AT MAX PCB L (mm): - MAX PCB W (mm): - Screws: 2 Battery: - Accessories: Drawings: PDF DWG

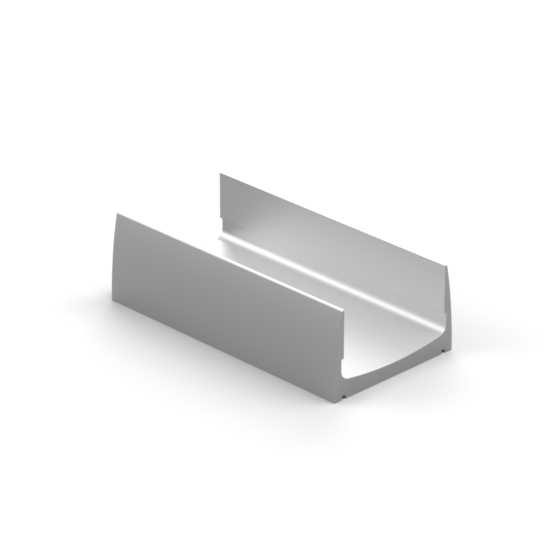

	VS1.1	100	51,6	30	9006	ALLOY 6060	-	-	-	-			View Color (Ral): 9006 Material: ALLOY 6060 MAX PCB L (mm): - MAX PCB W (mm): - Screws: - Battery: - Accessories: Drawings: PDF DWG

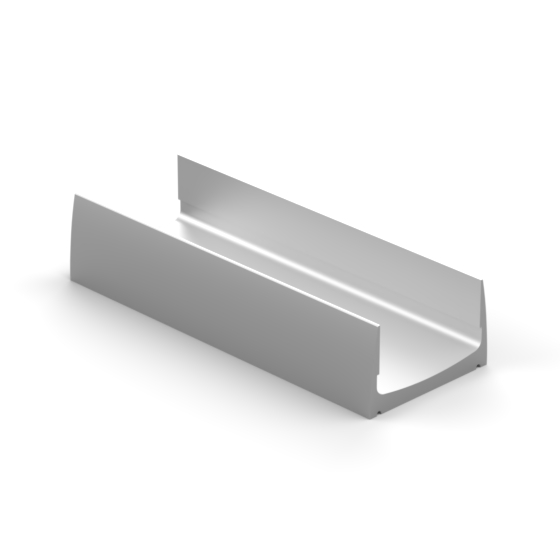

	VS2.1	135	51,5	30	9006	ALLOY 6060	-	-	-	-			View Color (Ral): 9006 Material: ALLOY 6060 MAX PCB L (mm): - MAX PCB W (mm): - Screws: - Battery: - Accessories: Drawings: PDF DWG

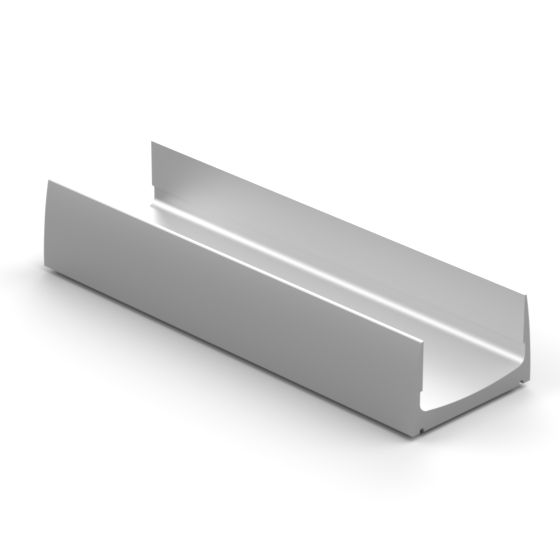

	VS3.1	165	51,5	30	9006	ALLOY 6060	-	-	-	-			View Color (Ral): 9006 Material: ALLOY 6060 MAX PCB L (mm): - MAX PCB W (mm): - Screws: - Battery: - Accessories: Drawings: PDF DWG

12 product families, 155 series. You can't find what you're looking for? Contact us
