AUS

Description

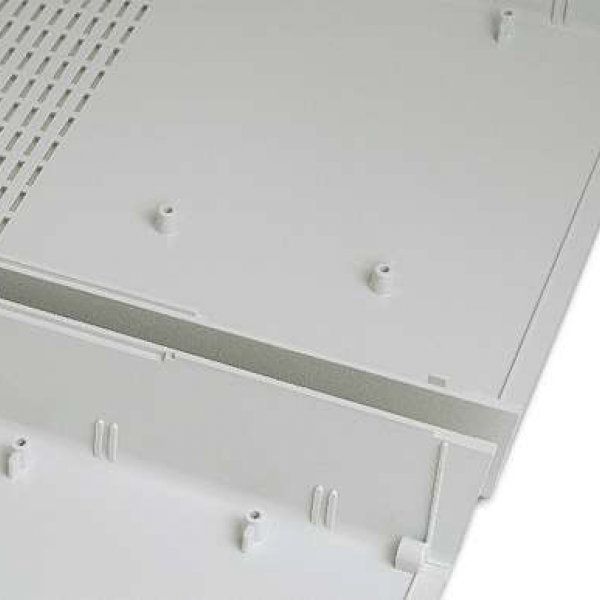

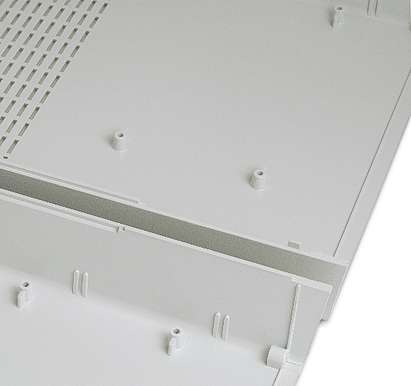

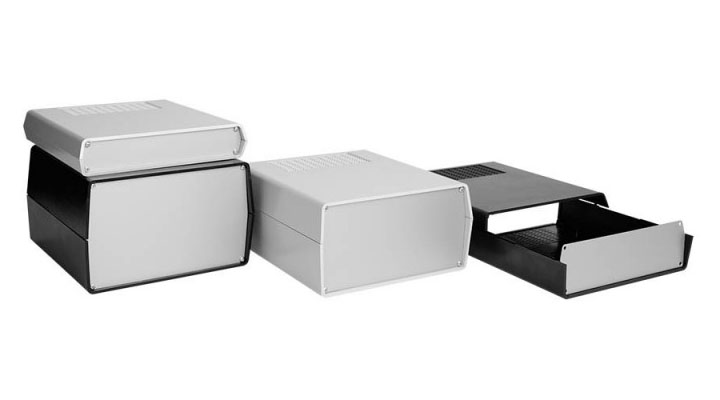

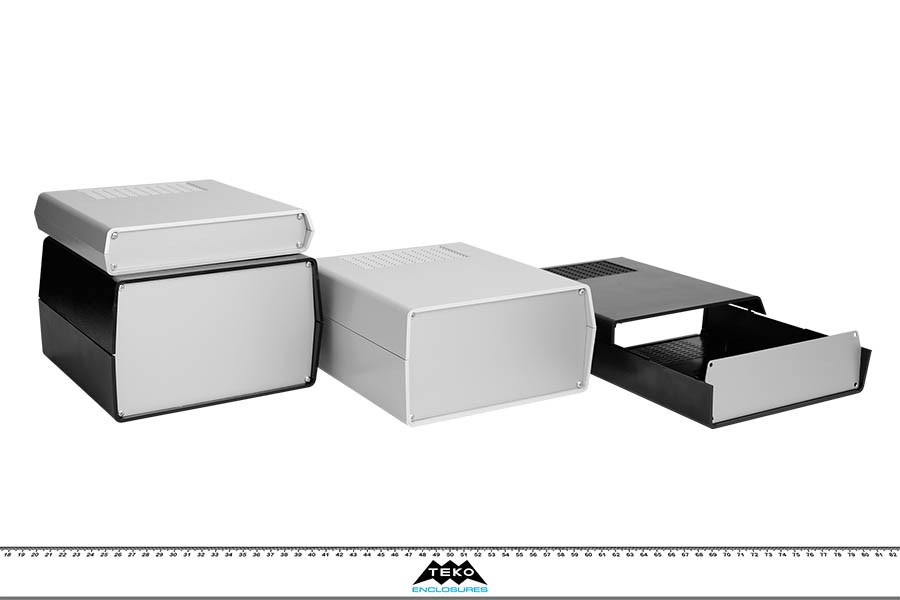

ABS enclosures with matte surfaces, featuring two 1 mm thick pre-painted silver aluminum front panels. The top and bottom shells include ventilation slots and PCB mounting points. Eight-screw closure.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

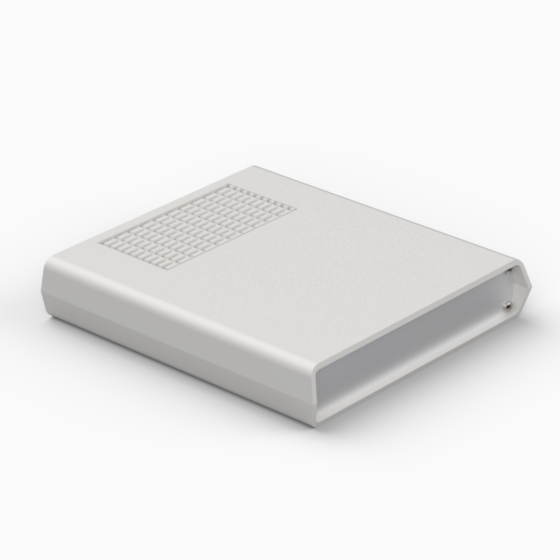

AUS-11.5 198 178 36 9018
 AG-ATY 170 162 8 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 170
  • MAX PCB W (mm): 162
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

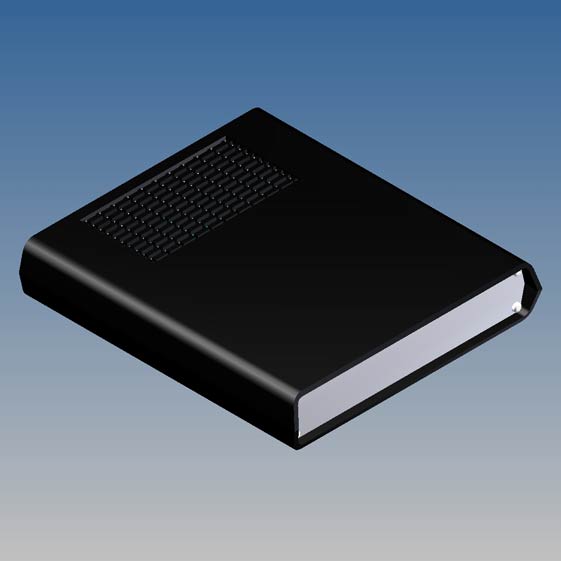

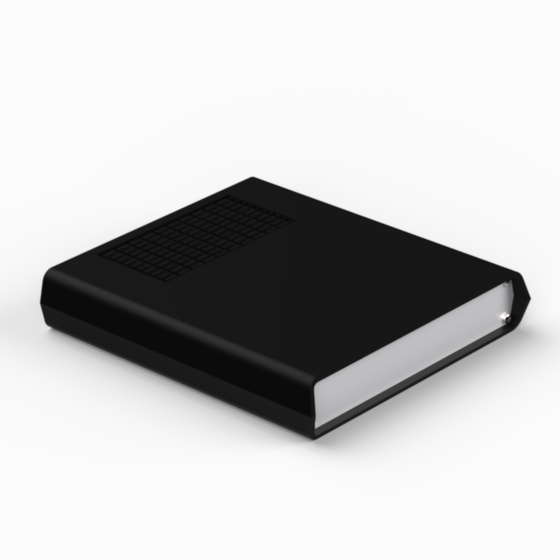

AUS-11.9 198 178 36 9004
 P2H-AT 170 162 8 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 170
  • MAX PCB W (mm): 162
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

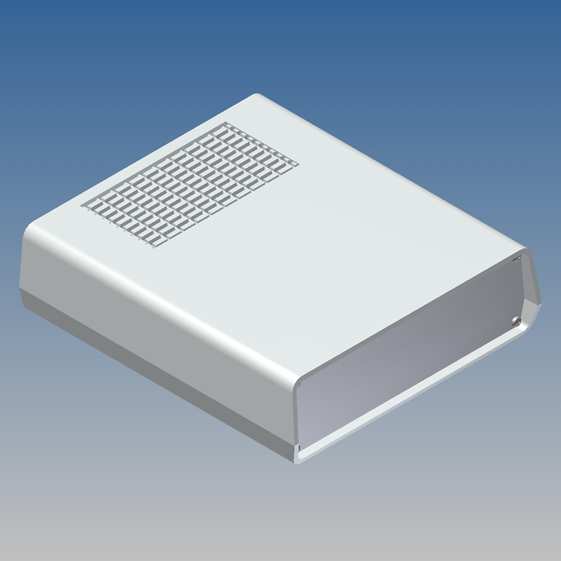

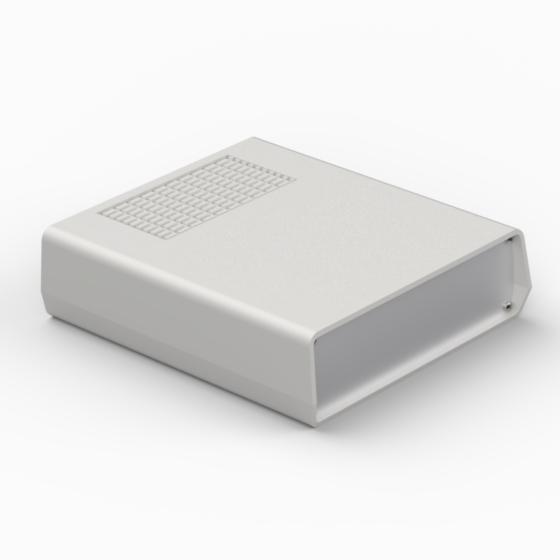

AUS-12.5 198 178 54 9018
 AG-ATY 170 162 8 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 170
  • MAX PCB W (mm): 162
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

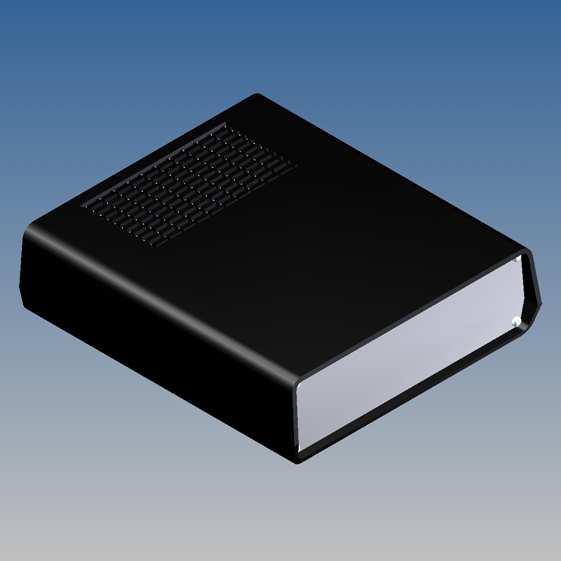

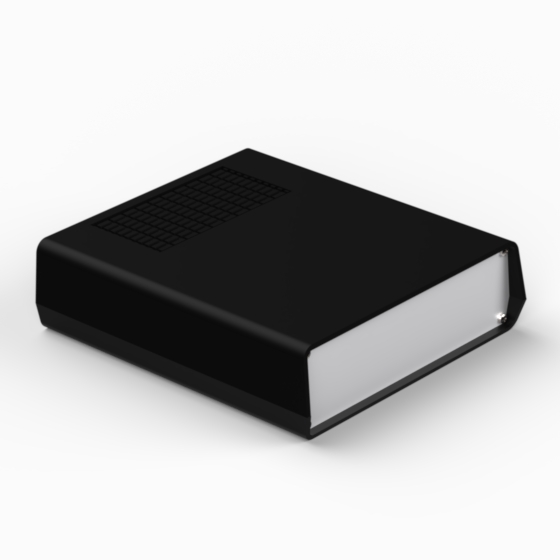

AUS-12.9 198 178 54 9004
 P2H-AT 170 162 8 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 170
  • MAX PCB W (mm): 162
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

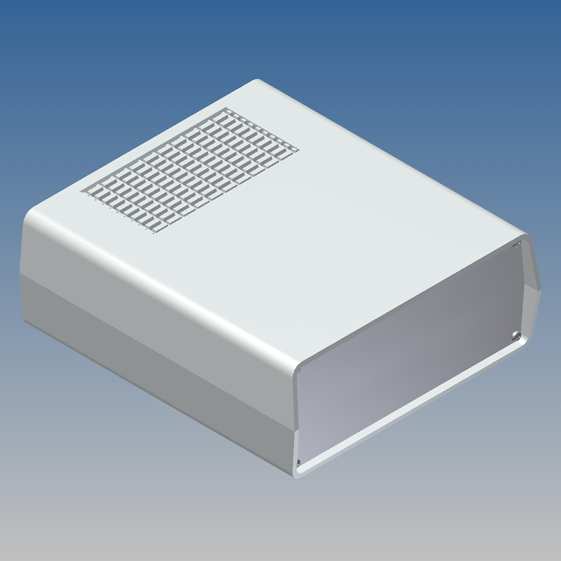

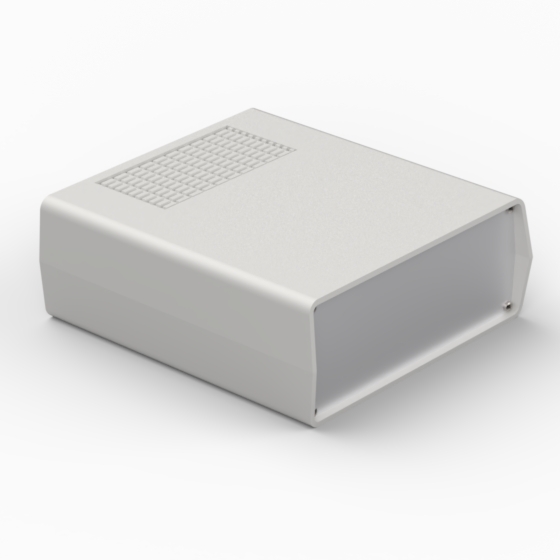

AUS-22.5 198 178 72 9018
 AG-ATY 170 162 8 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 170
  • MAX PCB W (mm): 162
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

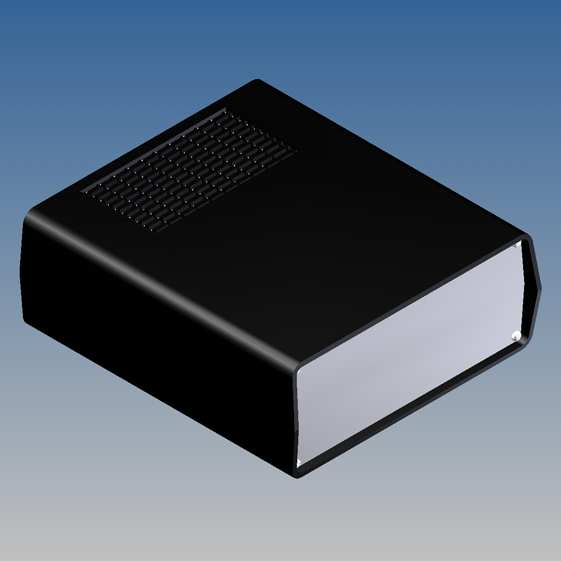

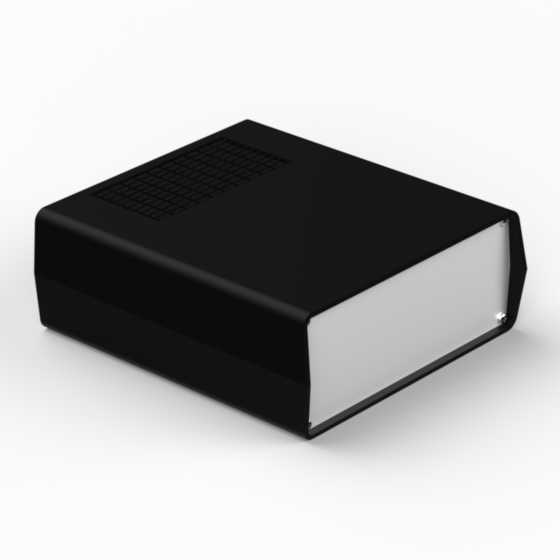

AUS-22.9 198 178 72 9004
 P2H-AT 170 162 8 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 170
  • MAX PCB W (mm): 162
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

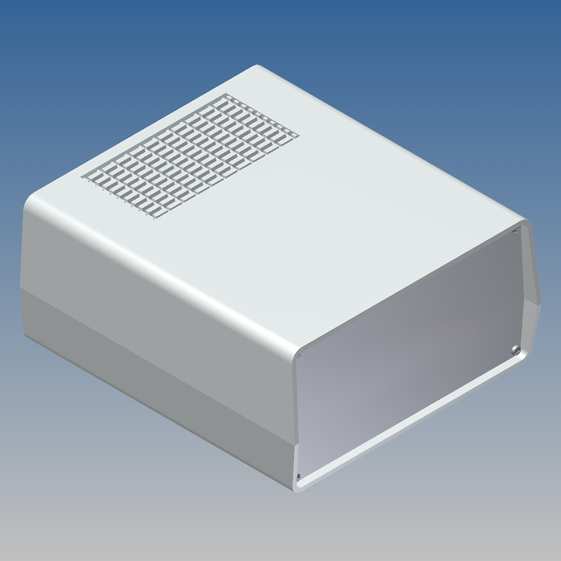

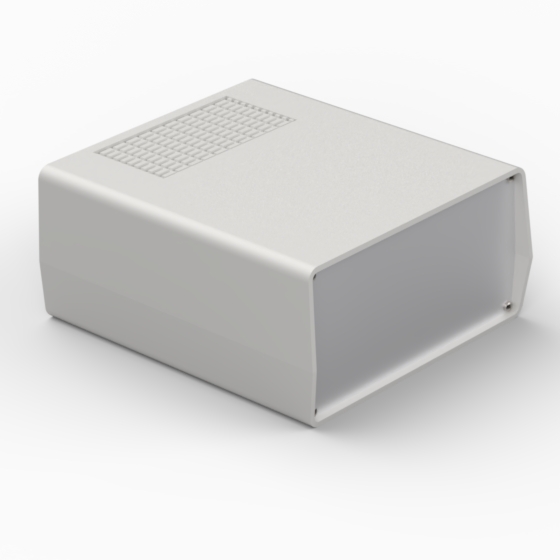

AUS-23.5 198 178 90 9018
 AG-ATY 170 162 8 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 170
  • MAX PCB W (mm): 162
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

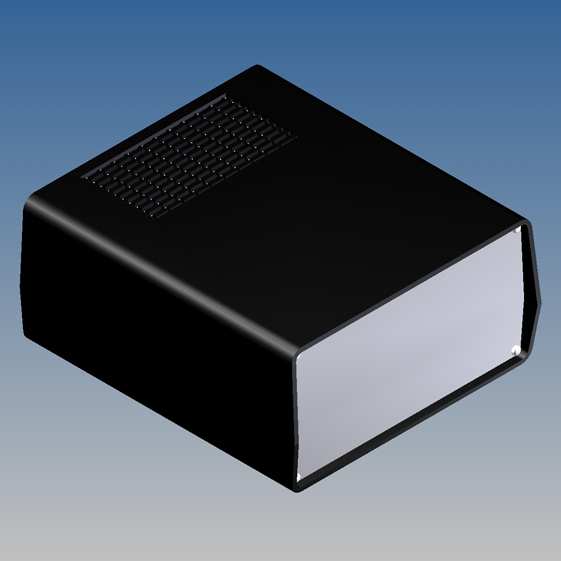

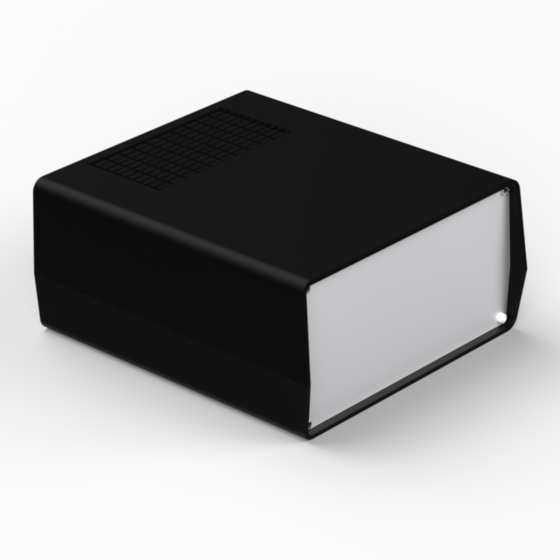

AUS-23.9 198 178 90 9004
 P2H-AT 170 162 8 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 170
  • MAX PCB W (mm): 162
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

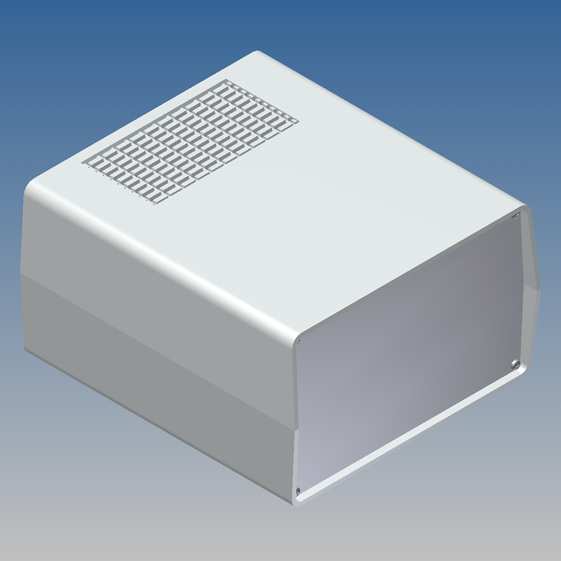

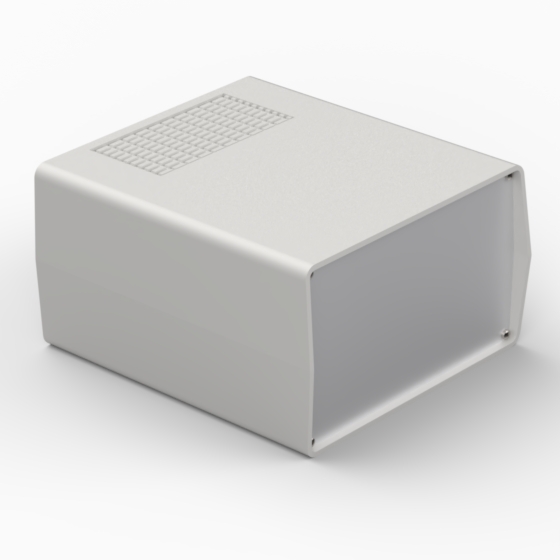

AUS-33.5 198 178 108 9018
 AG-ATY 170 162 8 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 170
  • MAX PCB W (mm): 162
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
AUS-33.9 198 178 108 9004
 P2H-AT 170 162 8 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 170
  • MAX PCB W (mm): 162
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
