Description

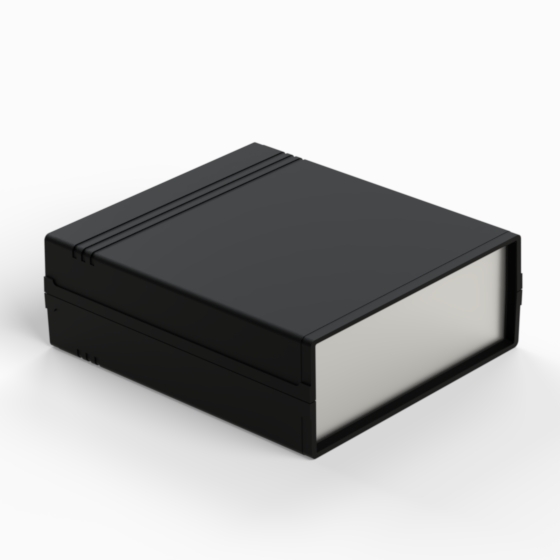

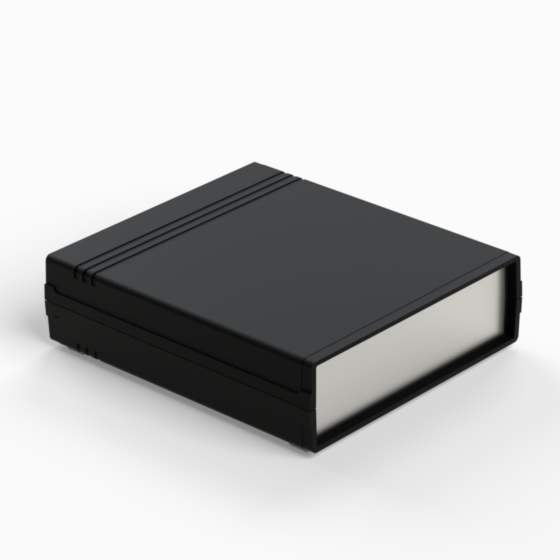

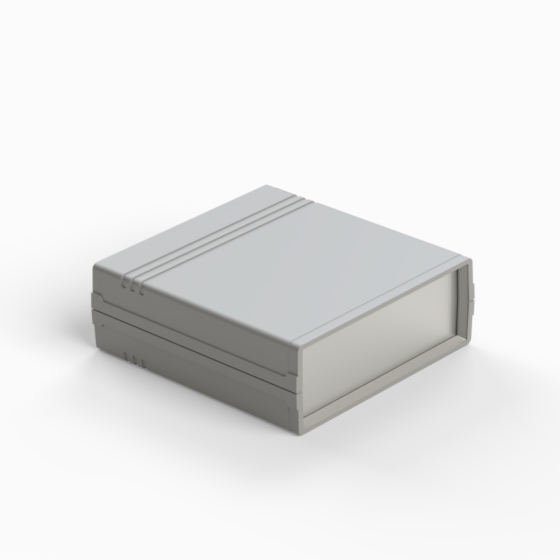

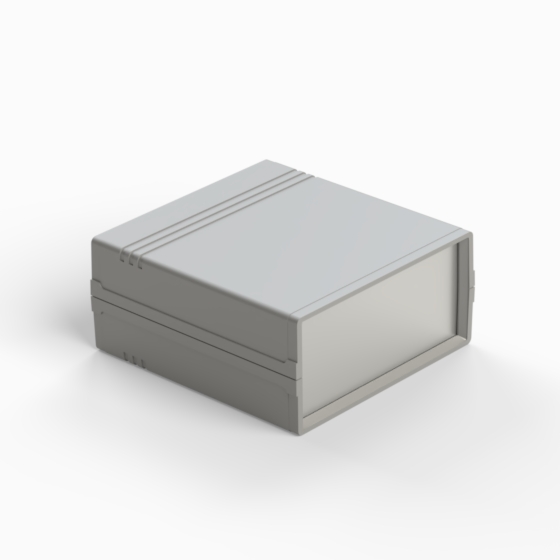

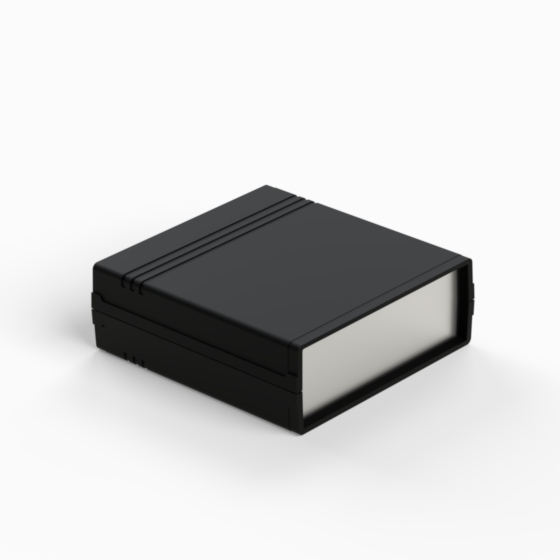

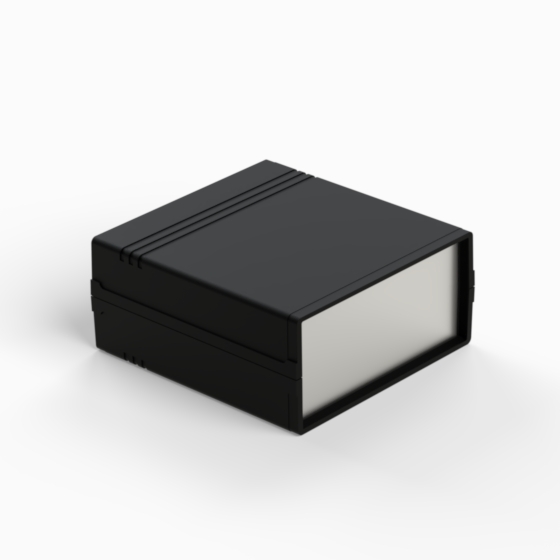

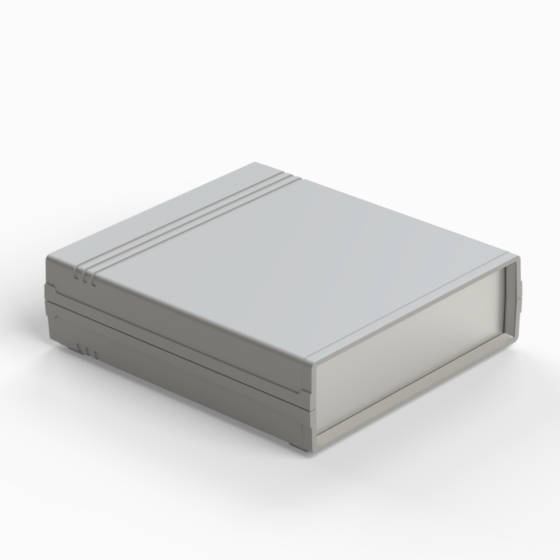

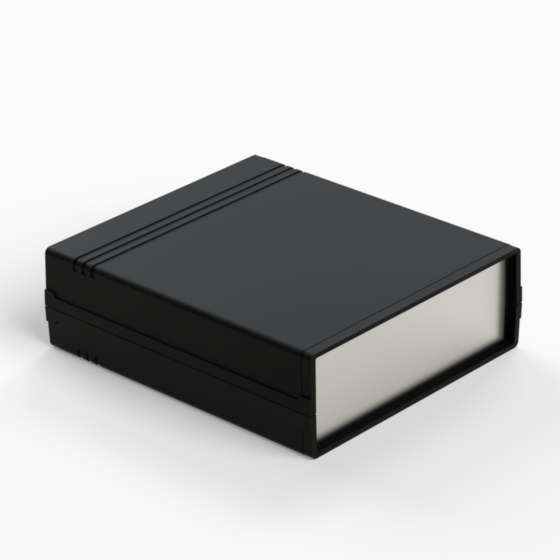

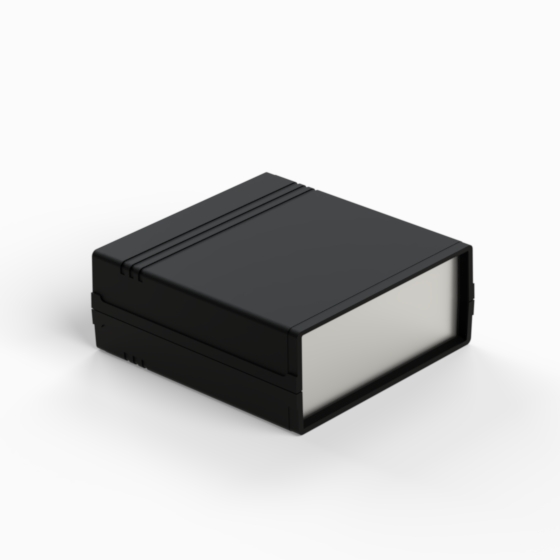

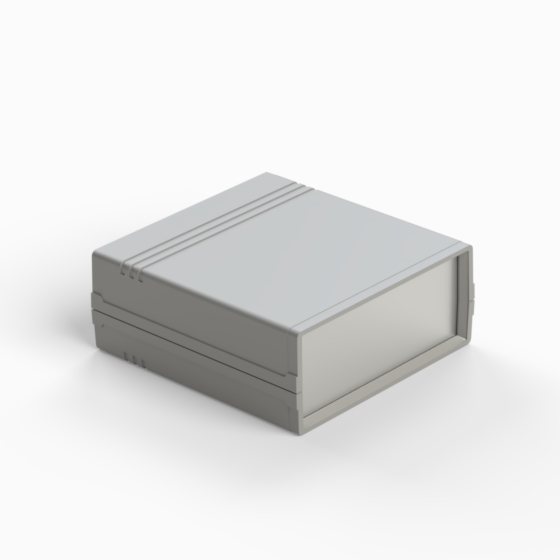

ABS enclosure with matte surfaces. Features a 1 mm thick aluminum front panel and an ABS rear panel with a compartment for a 9V(PP3) battery. Internally, it includes guides and mounting points for PCBs. Secured by two screws. The enclosure is also available with light gray ABS panels (.13). Plastic panel versions: 011P-B, 012P-B, 022P-B, 222P-B, 223P-B, 233P-B.
Details
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
011-B.5 | 134 | 129 | 47 |
9018 |
AG-ATY | 116 | 115 | 2 | 1 x 9V |
AB9 PP11 |
PDF DWG |
|
|
011-B.9 | 134 | 129 | 47 |
9004 |
P2H-AT | 116 | 115 | 2 | 1 x 9V |
AB9 PP11 |
PDF DWG |
|
|
012-B.5 | 134 | 129 | 54 |
9018 |
AG-ATY | 116 | 115 | 2 | 1 x 9V |
AB9 PP12 |
PDF DWG |
|
|
012-B.9 | 134 | 129 | 54 |
9004 |
P2H-AT | 116 | 115 | 2 | 1 x 9V |
AB9 PP12 |
PDF DWG |
|
|
022-B.5 | 134 | 129 | 61 |
9018 |
AG-ATY | 116 | 115 | 2 | 1 x 9V |
AB9 PP22 |
PDF DWG |
|
|
022-B.9 | 134 | 129 | 61 |
9004 |
P2H-AT | 116 | 115 | 2 | 1 x 9V |
AB9 PP22 |
PDF DWG |
|
|
222-B.5 | 173 | 154 | 47 |
9018 |
AG-ATY | 154 | 140 | 2 | 1 x 9V |
AB9 PP222 |
PDF DWG |
|
|
222-B.9 | 173 | 154 | 47 |
9004 |
P2H-AT | 154 | 140 | 2 | 1 x 9V |
AB9 PP222 |
PDF DWG |
|
|
223-B.5 | 173 | 154 | 54 |
9018 |
AG-ATY | 154 | 140 | 2 | 1 x 9V |
AB9 PP223 |
PDF DWG |
|
|
223-B.9 | 173 | 154 | 54 |
9004 |
P2H-AT | 154 | 140 | 2 | 1 x 9V |
AB9 PP223 |
PDF DWG |
|
|
233-B.5 | 173 | 154 | 61 |
9018 |
AG-ATY | 154 | 140 | 2 | 1 x 9V |
AB9 PP233 |
PDF DWG |
|
|
233-B.9 | 173 | 154 | 61 |
9004 |
P2H-AT | 154 | 140 | 2 | 1 x 9V |
AB9 PP233 |
PDF DWG |
12 product families, 155 series. You can't find what you're looking for? Contact us
