Description

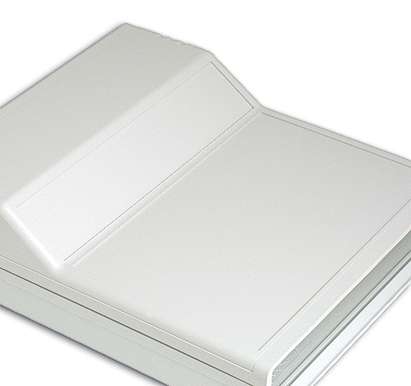

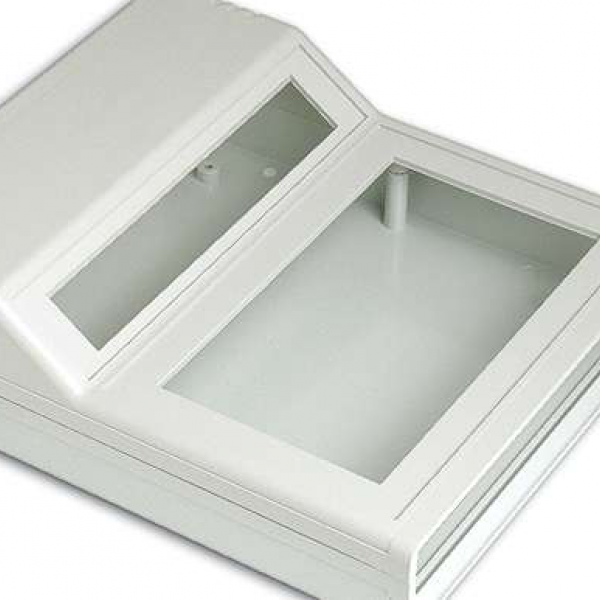

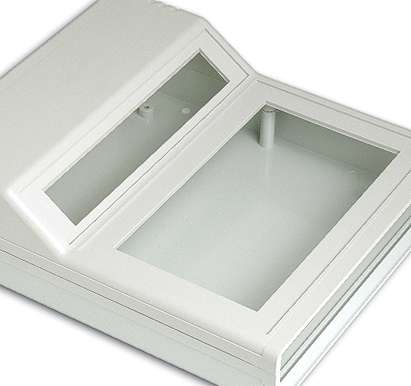

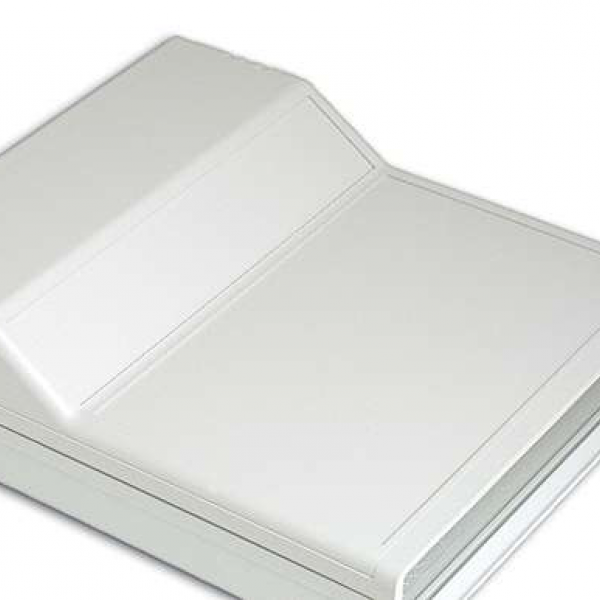

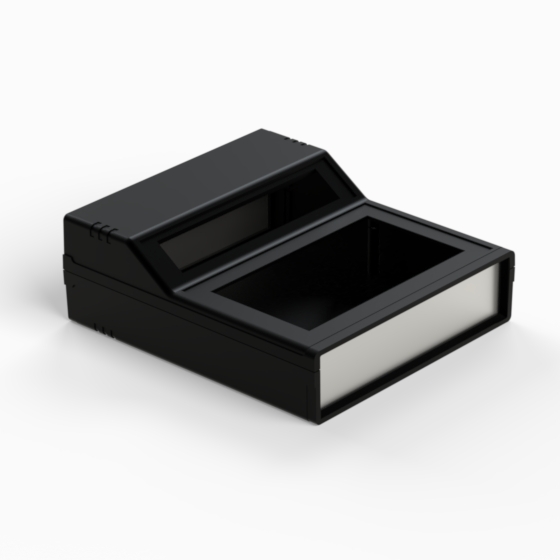

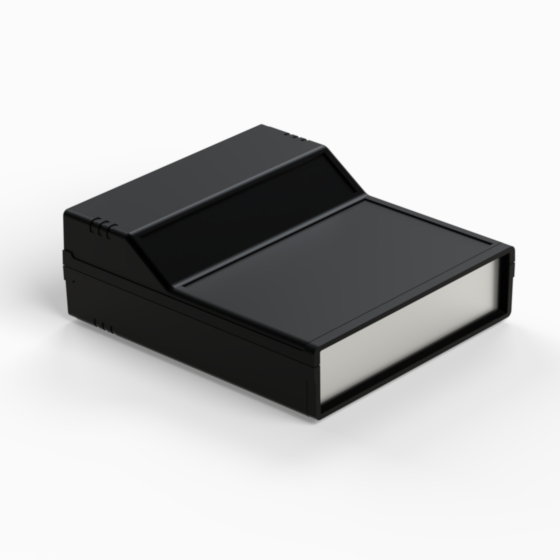

ABS enclosures with matte surfaces, featuring two 1 mm thick aluminum front panels. Both housing halves include guides and mounting points for PCBs. Matte finish. Models “242” and “243” feature a top section inclined at 45°. Models “242/O” and “243/O” feature two openings in the top shell. Secured by just two screws. Dark grey ABS panels (Models PP223 and PP233) and 9V battery clip contacts (AB9) are available upon request.
Details
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

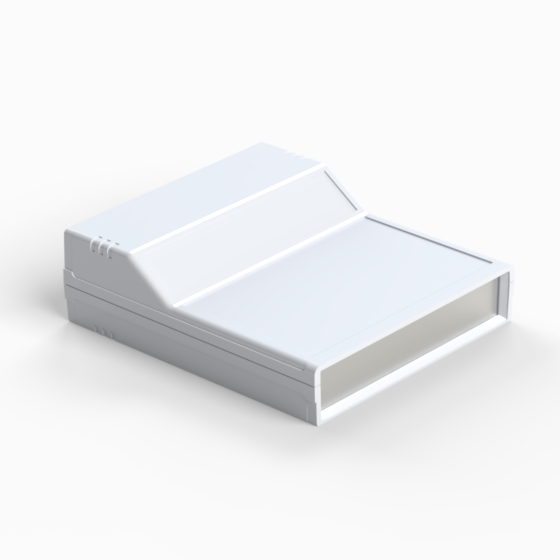

242.5 | 173 | 154 | 54 |
9018 |
AG-ATY | 154 | 140 | 2 | - |
PP223 |
PDF DWG |
|
|

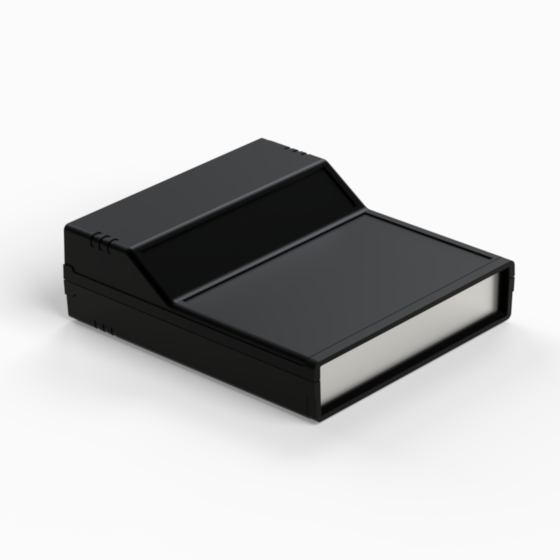

242.9 | 173 | 154 | 54 |
9004 |
P2H-AT | 154 | 140 | 2 | - |
PP223 |
PDF DWG |
|
|

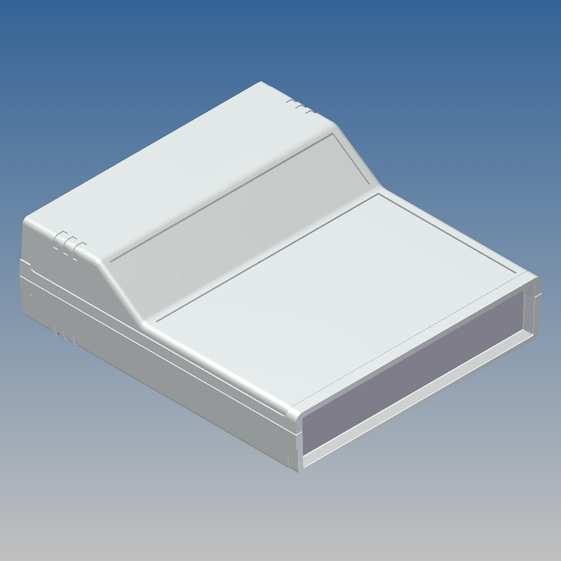

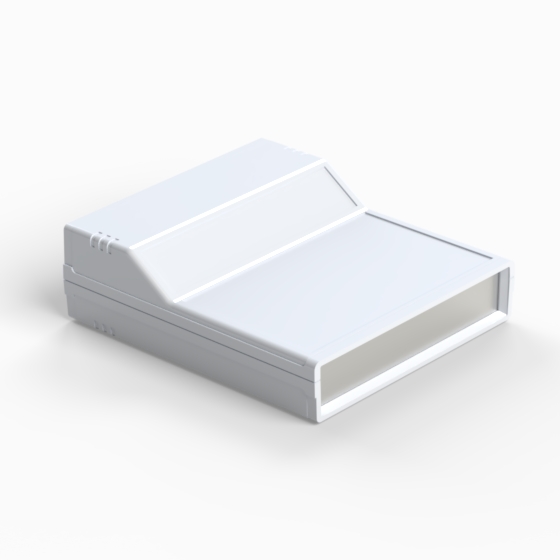

242-B.5 | 173 | 154 | 54 |
9018 |
AG-ATY | 154 | 140 | 2 | 1 x 9V |
AB9 PP223 |
PDF DWG |
|
|

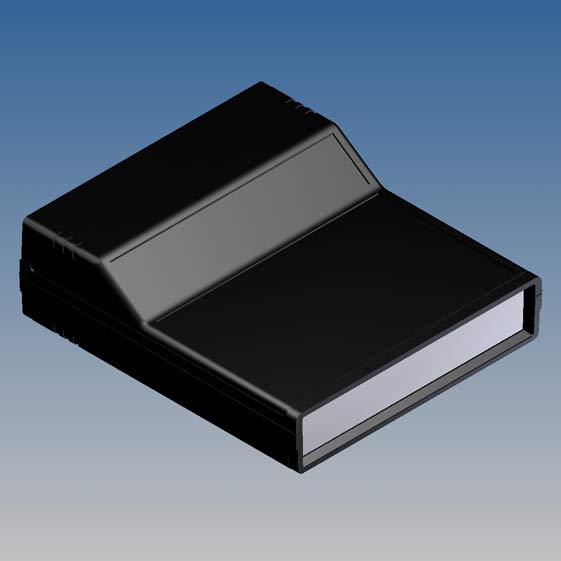

242-B.9 | 173 | 154 | 54 |
9004 |
P2H-AT | 154 | 140 | 2 | 1 x 9V |
AB9 PP223 |
PDF DWG |
|
|

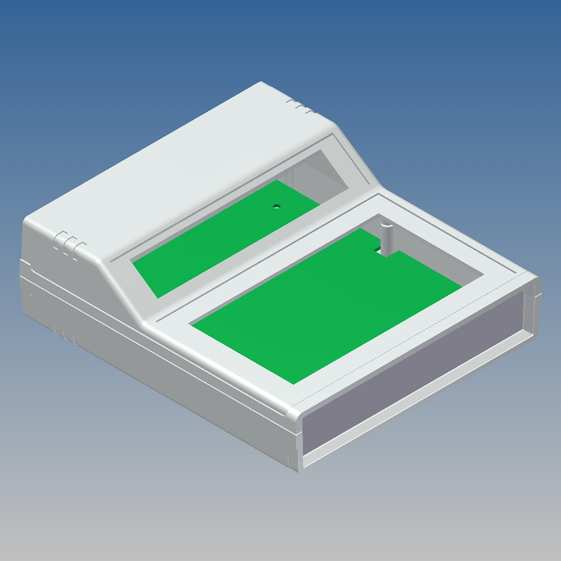

242/O.5 | 173 | 154 | 54 |
9018 |
AG-ATY | 154 | 140 | 2 | - |
PP223 |
PDF DWG |
|
|

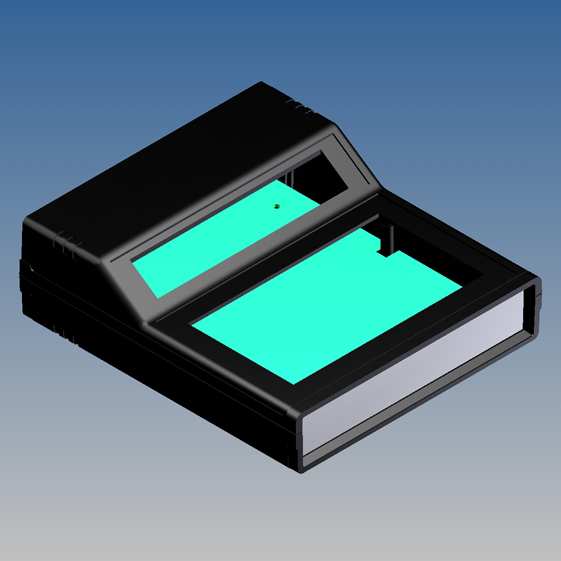

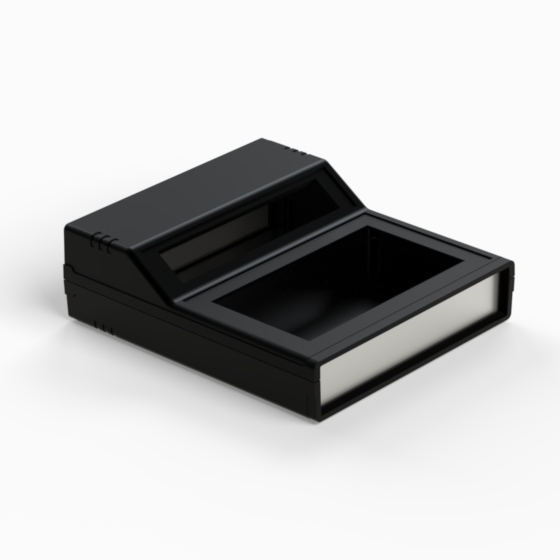

242/O.9 | 173 | 154 | 54 |
9004 |
P2H-AT | 154 | 140 | 2 | - |
PP223 |
PDF DWG |
|
|
243.5 | 173 | 154 | 61 |
9018 |
AG-ATY | 154 | 140 | 2 | - |
PP233 |
PDF DWG |
|
|
243.9 | 173 | 154 | 61 |
9004 |
P2H-AT | 154 | 140 | 2 | - |
PP233 |
PDF DWG |
|
|

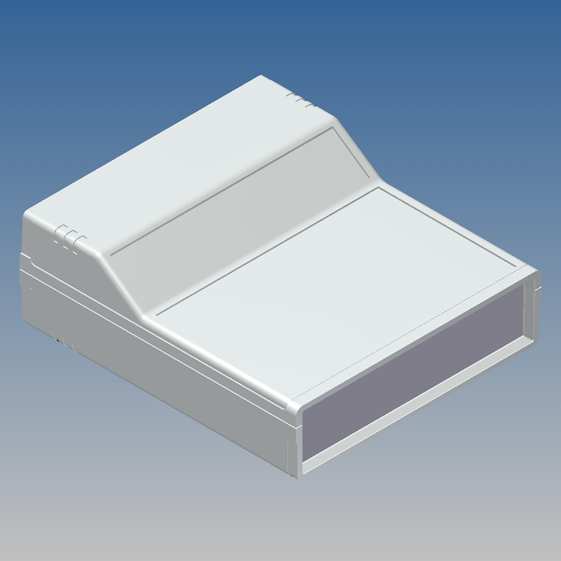

243-B.5 | 173 | 154 | 61 |
9018 |
AG-ATY | 154 | 140 | 2 | 1 x 9V |
AB9 PP233 |
PDF DWG |
|
|

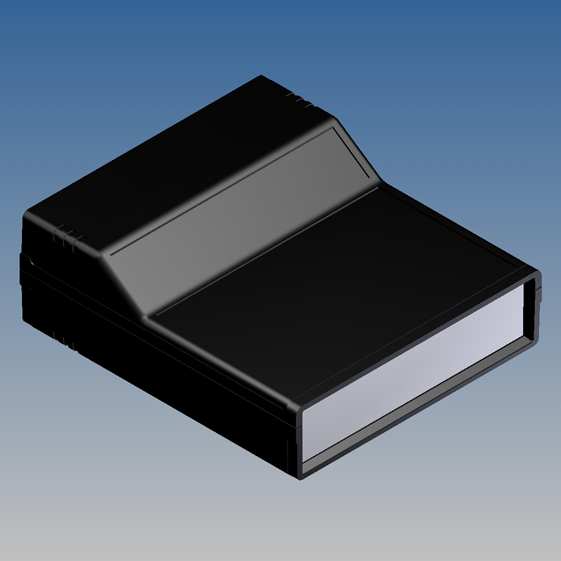

243-B.9 | 173 | 154 | 61 |
9004 |
P2H-AT | 154 | 140 | 2 | 1 x 9V |
AB9 PP233 |
PDF DWG |
|
|

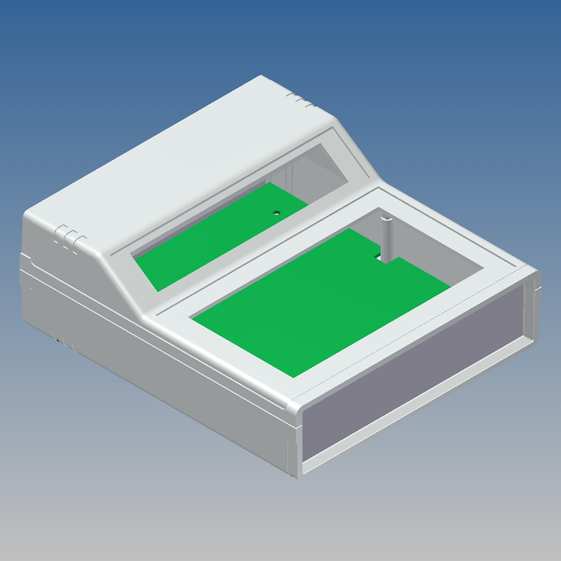

243/O.5 | 173 | 154 | 61 |
9018 |
AG-ATY | 154 | 140 | 2 | - |
PP233 |
PDF DWG |
|
|

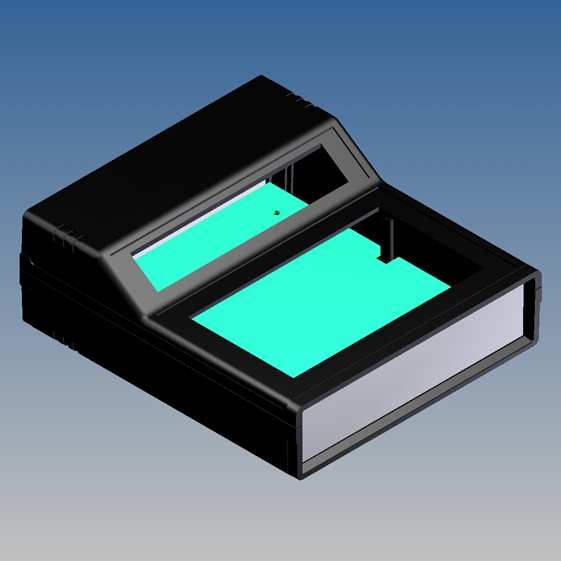

243/O.9 | 173 | 154 | 61 |
9004 |
P2H-AT | 154 | 140 | 2 | - |
PP233 |
PDF DWG |
12 product families, 155 series. You can't find what you're looking for? Contact us
