Description

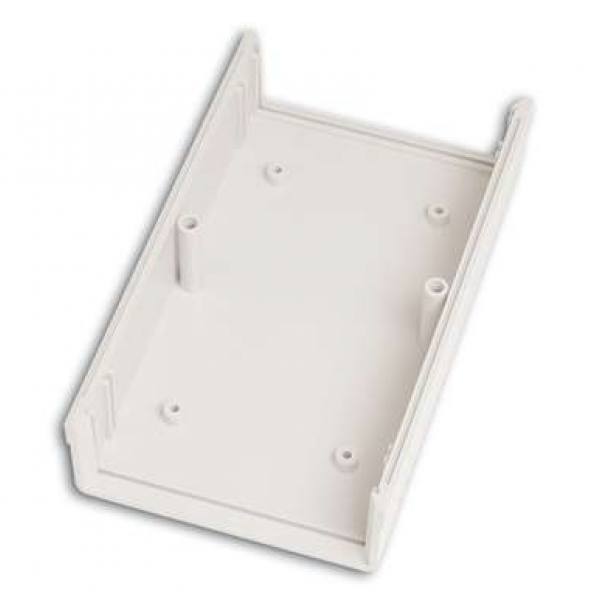

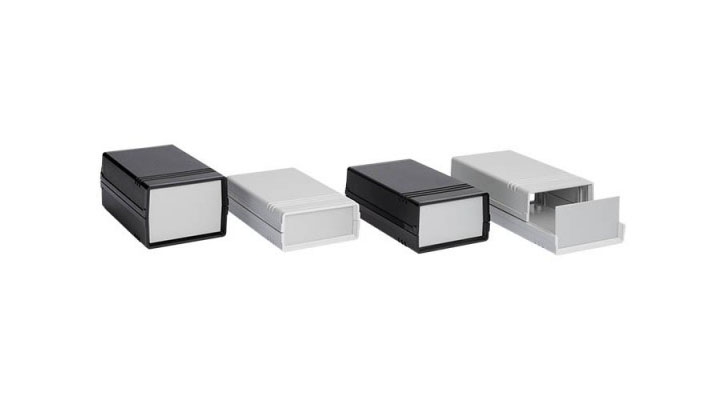

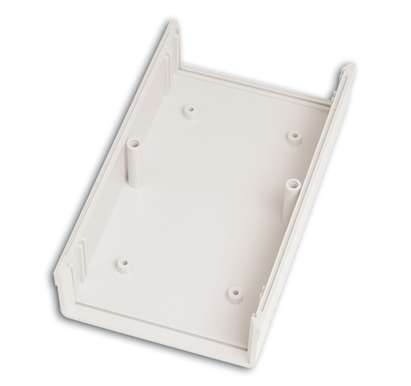

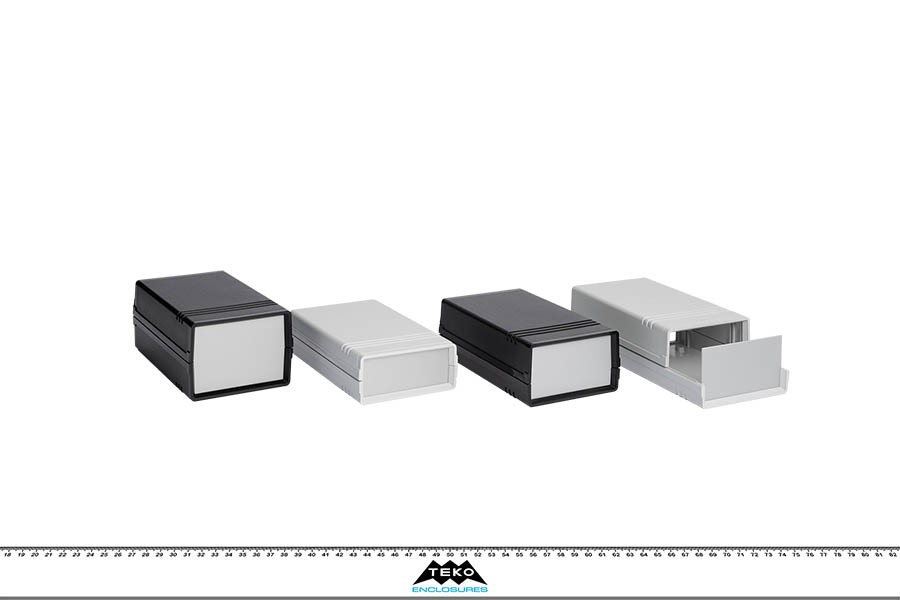

ABS enclosure with matte surfaces and 1 mm thick silver pre-painted aluminum panels. Internally, it features guides and mounting points for PCBs. Secured by two screws. The enclosure can be fitted with plastic panels (Models PPD1, PPD2, and PPD3).
Details
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

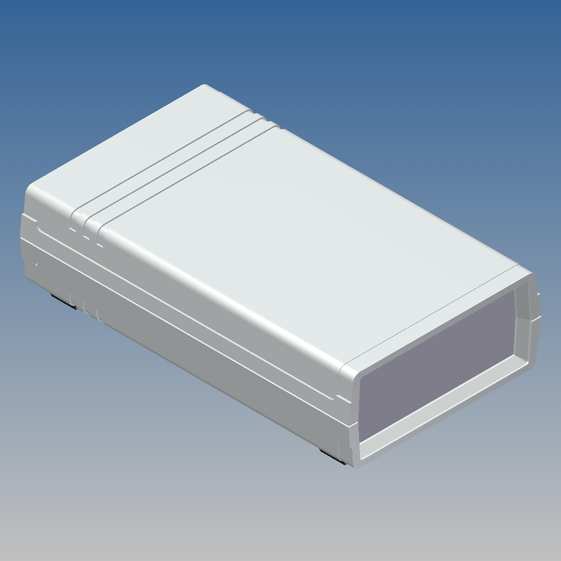

10001.5 | 145 | 85 | 37 |
9018 |
AG-ATY | 126 | 72 | 2 | - |
PPD1 |
PDF DWG |
|
|

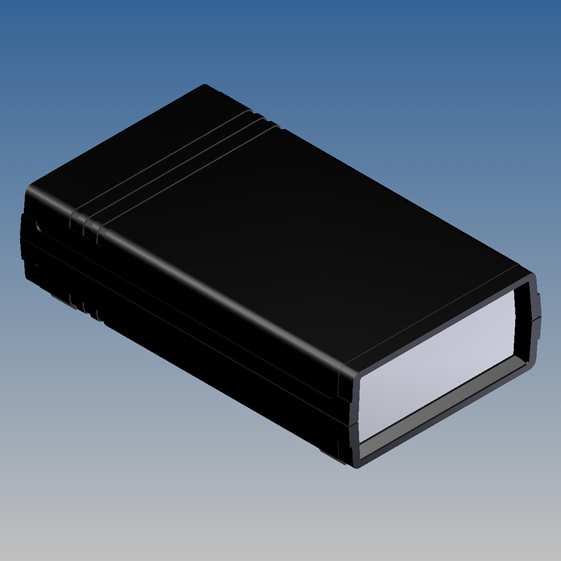

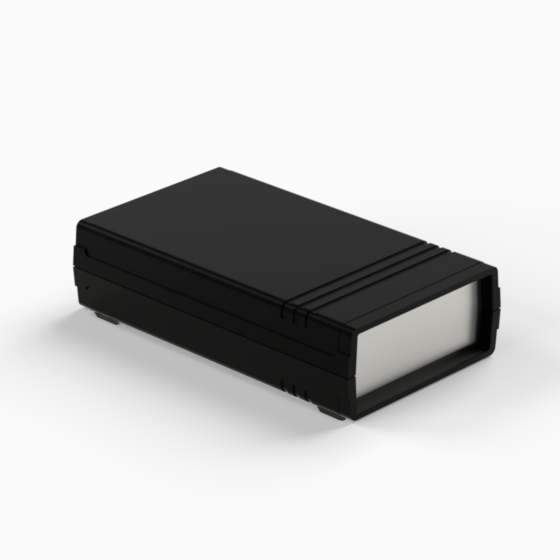

10001.9 | 145 | 85 | 37 |
9004 |
P2H-AT | 126 | 72 | 2 | - |
PPD1 |
PDF DWG |
|
|

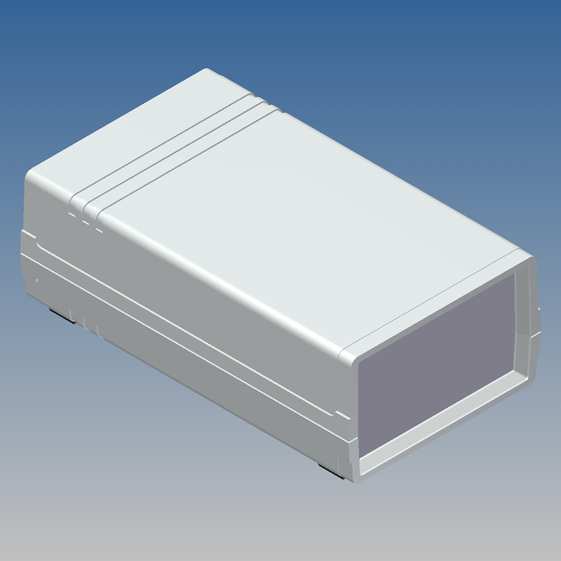

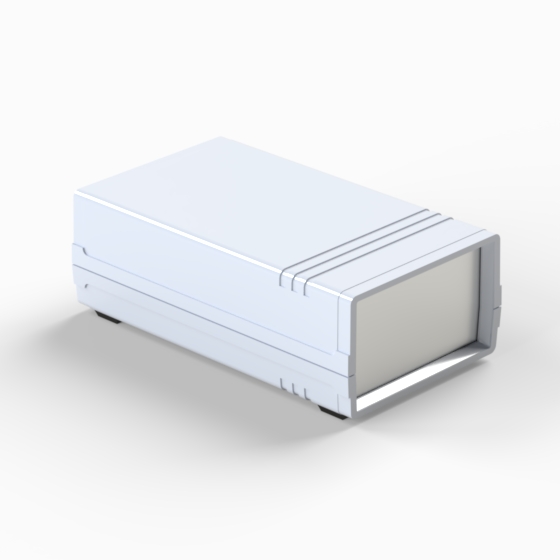

10002.5 | 145 | 85 | 49 |
9018 |
AG-ATY | 126 | 72 | 2 | - |
PPD2 |
PDF DWG |
|
|

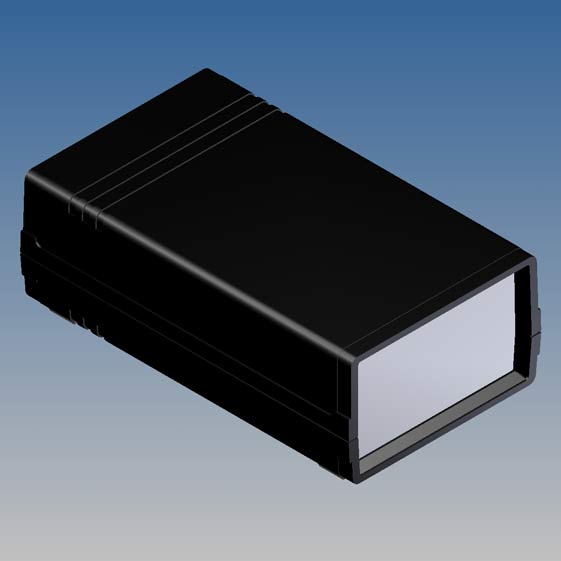

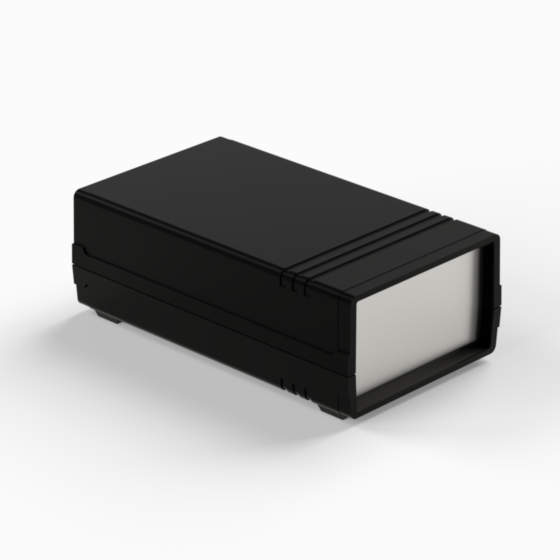

10002.9 | 145 | 85 | 49 |
9004 |
P2H-AT | 126 | 72 | 2 | - |
PPD2 |
PDF DWG |
|
|

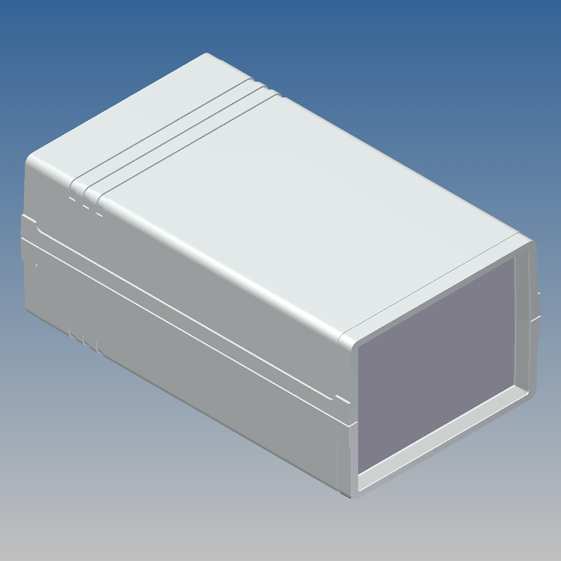

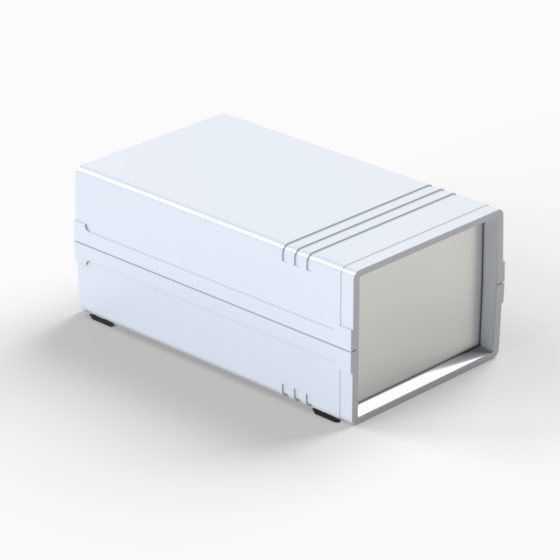

10003.5 | 145 | 85 | 61 |
9018 |
AG-ATY | 126 | 72 | 2 | - |
PPD3 |
PDF DWG |
|
|

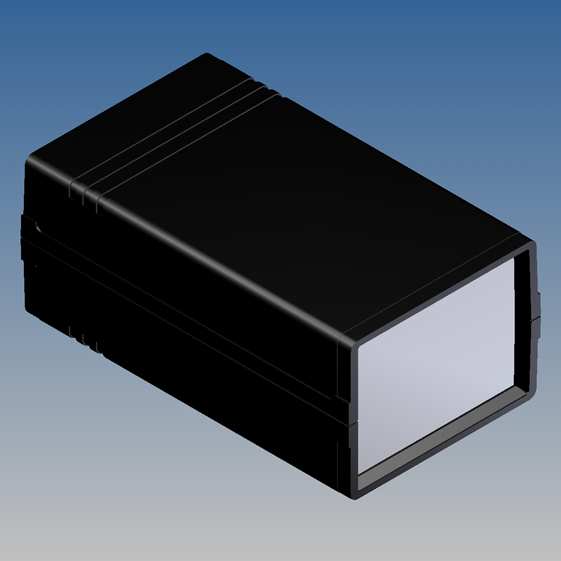

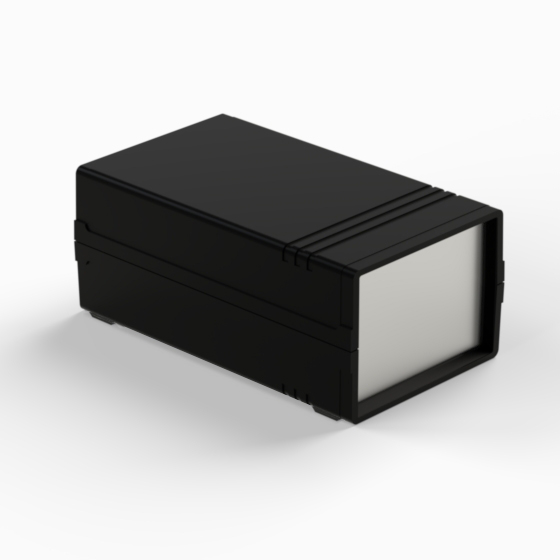

10003.9 | 145 | 85 | 61 |
9004 |
P2H-AT | 126 | 72 | 2 | - |
PPD3 |
PDF DWG |
