DESIGNER B

Description

ABS enclosure with matte surfaces. Features 1 mm thick silver pre-painted aluminum panels; the bottom shell includes a compartment for a 9V (PP3) battery. Internal guides and mounting points for PCBs are provided. Secured by two screws. The enclosure can also be fitted with plastic panels (Models PPD2, and PPD3).

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

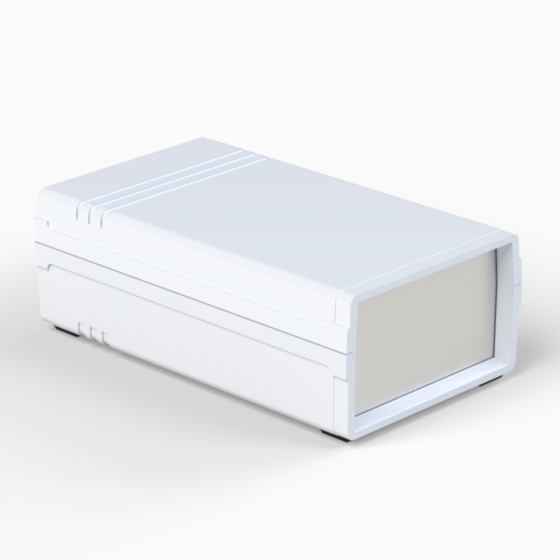

10002-B.5 145 85 49 9018
 AG-ATY 126 72 2 1 x 9V PPD2
AB9
 PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 126
  • MAX PCB W (mm): 72
  • Screws: 2
  • Battery: 1 x 9V
  • Accessories: PPD2 AB9
  • Drawings:  PDF  DWG

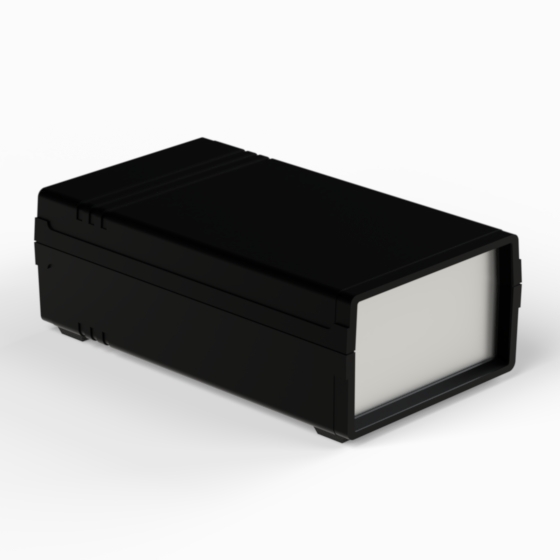

10002-B.9 145 85 49 9004
 P2H-AT 126 72 2 1 x 9V PPD2
AB9
 PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 126
  • MAX PCB W (mm): 72
  • Screws: 2
  • Battery: 1 x 9V
  • Accessories: PPD2 AB9
  • Drawings:  PDF  DWG

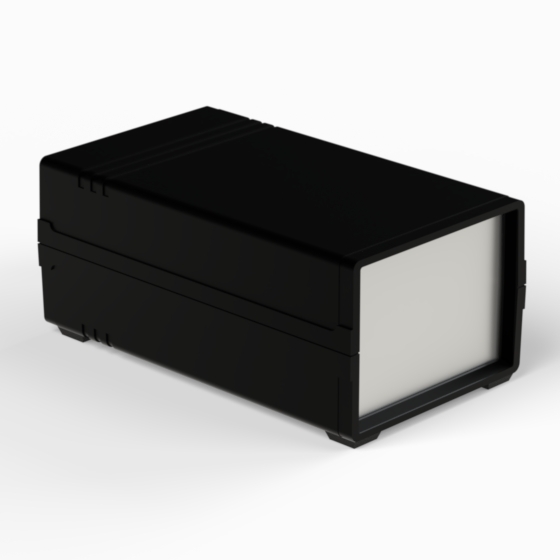

10003-B.5 145 85 61 9018
 AG-ATY 126 72 2 1 x 9V PPD3
AB9
 PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 126
  • MAX PCB W (mm): 72
  • Screws: 2
  • Battery: 1 x 9V
  • Accessories: PPD3 AB9
  • Drawings:  PDF  DWG
10003-B.9 145 85 61 9004
 P2H-AT 126 72 2 1 x 9V PPD3
AB9
 PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 126
  • MAX PCB W (mm): 72
  • Screws: 2
  • Battery: 1 x 9V
  • Accessories: PPD3 AB9
  • Drawings:  PDF  DWG
