Description

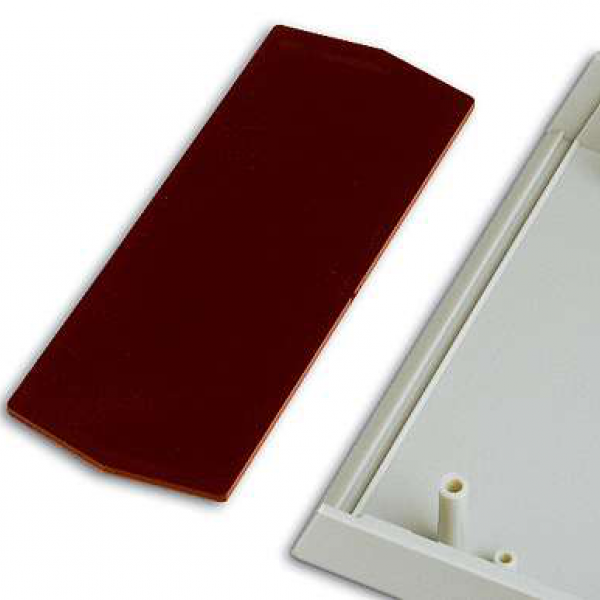

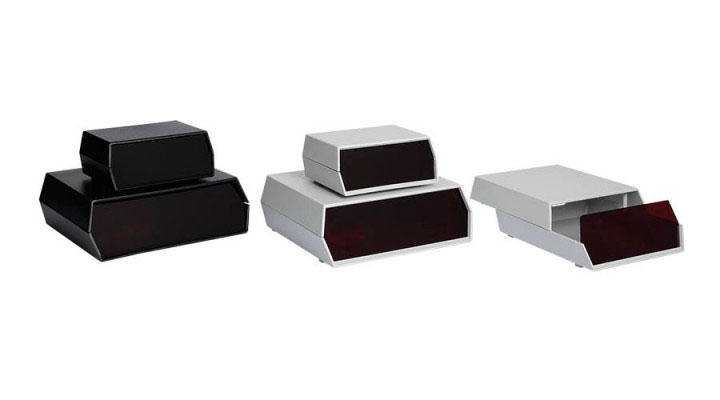

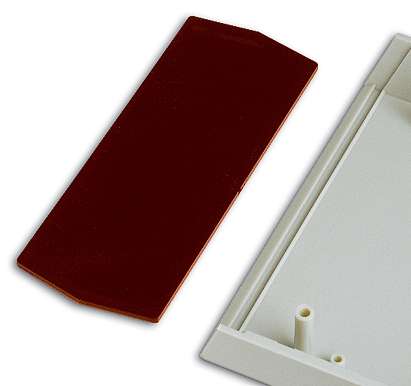

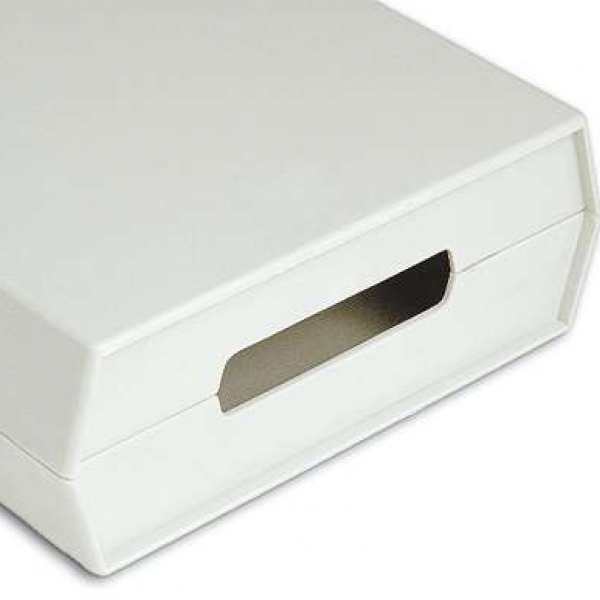

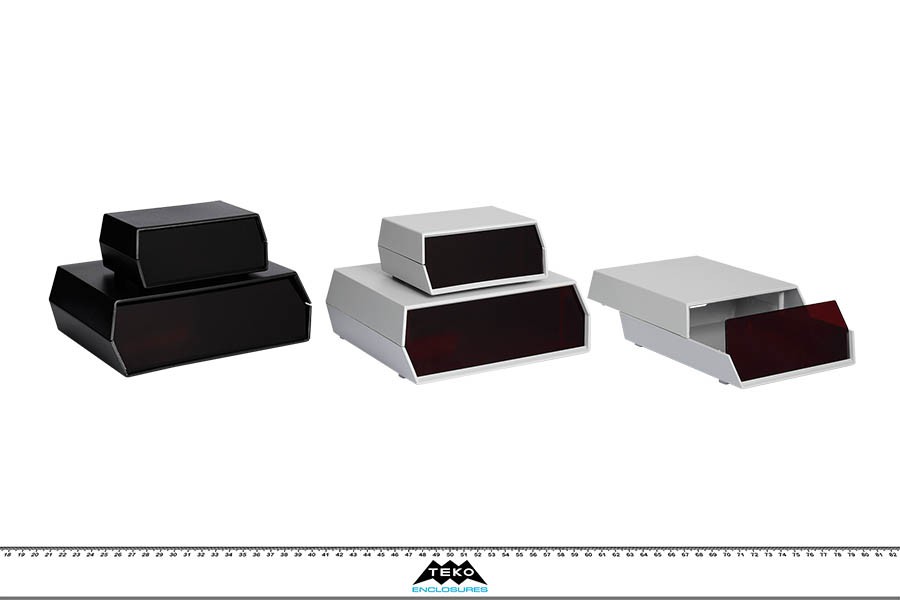

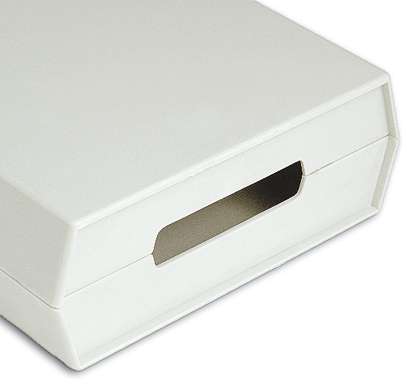

ABS enclosures with matte surfaces, featuring a translucent red polystyrene front panel angled at 20°. The enclosures are equipped with internal PCB mounting points. Models “D13” and “D14” feature a rear opening to facilitate wiring. Four-screw closure.
Details
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

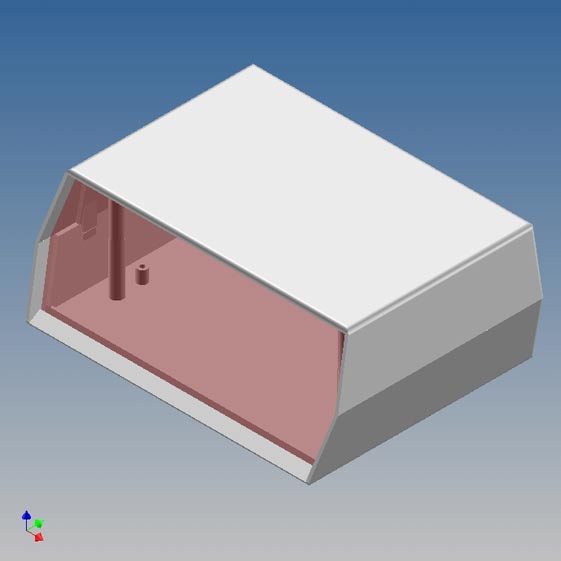

D-12.5 | 119,5 | 89 | 50 |
9018 |
AG-ATY | - | - | 4 | - |
PDF DWG |
||
|

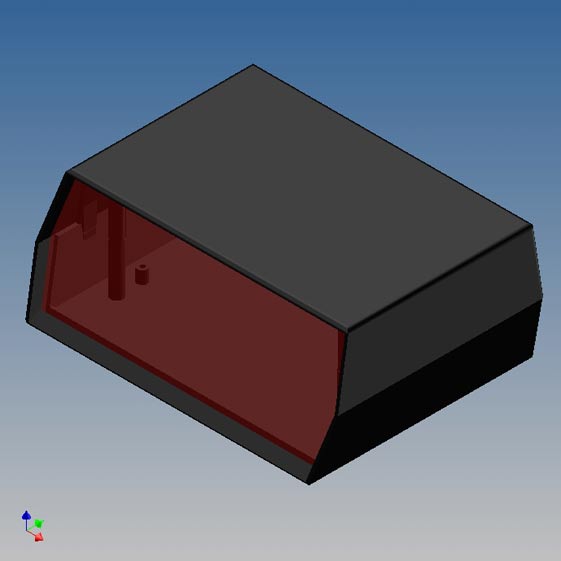

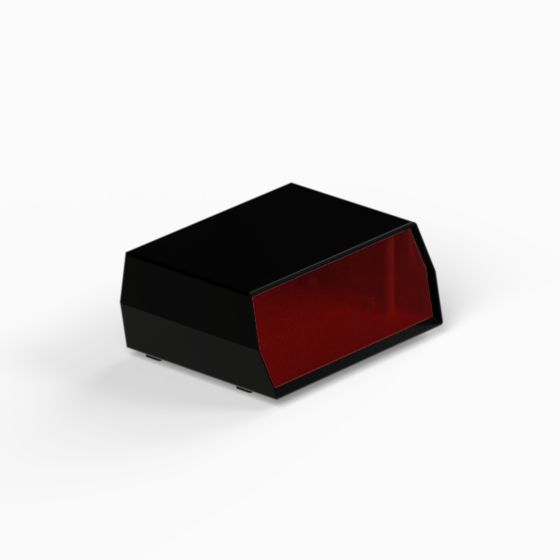

D-12.9 | 119,5 | 89 | 50 |
9004 |
P2H-AT | - | - | 4 | - |
PDF DWG |
||
|

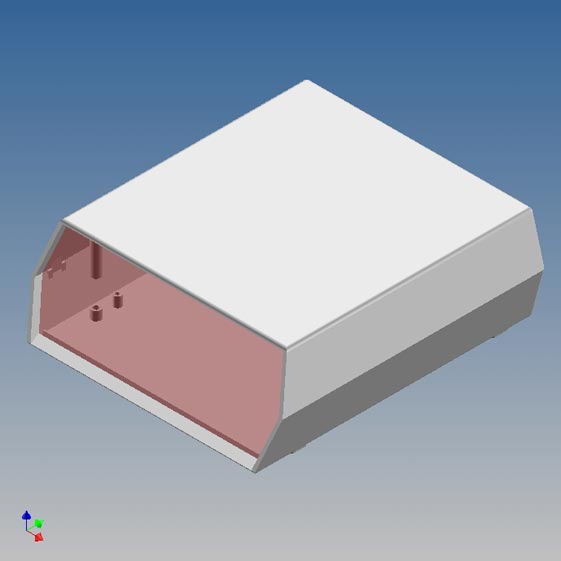

D-13.5 | 135 | 150 | 54 |
9018 |
AG-ATY | - | - | 4 | - |
PDF DWG |
||
|

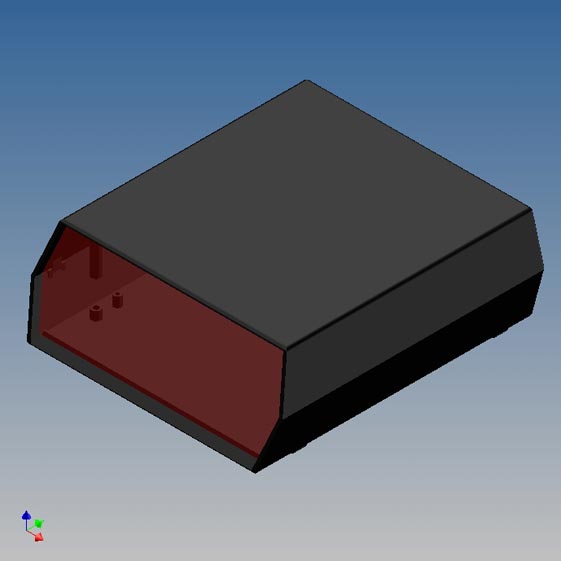

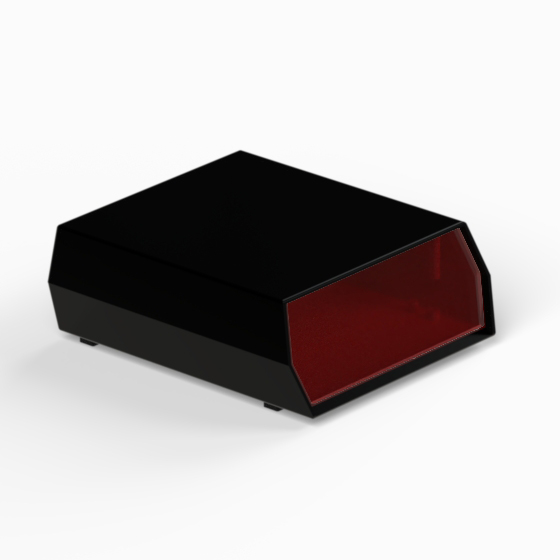

D-13.9 | 135 | 150 | 54 |
9004 |
P2H-AT | - | - | 4 | - |
PDF DWG |
||
|

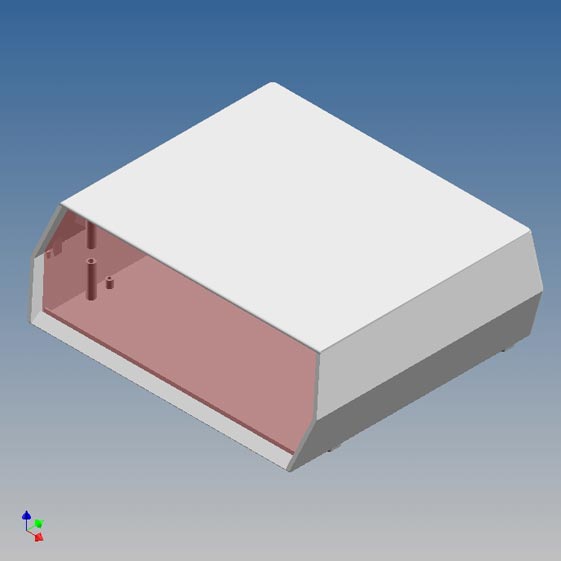

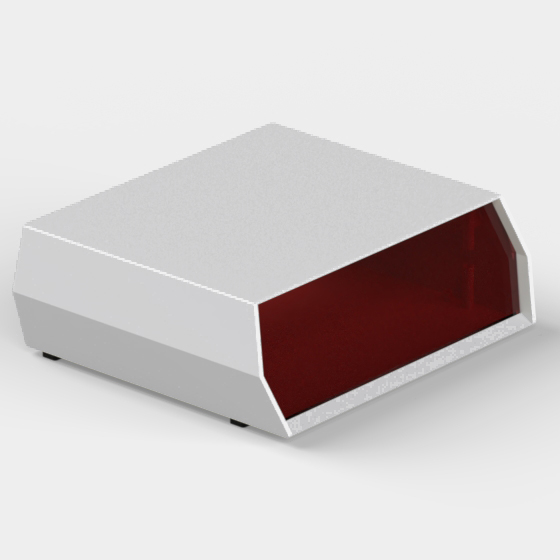

D-14.5 | 181 | 155 | 60 |
9018 |
AG-ATY | - | - | 4 | - |
PDF DWG |
||
|

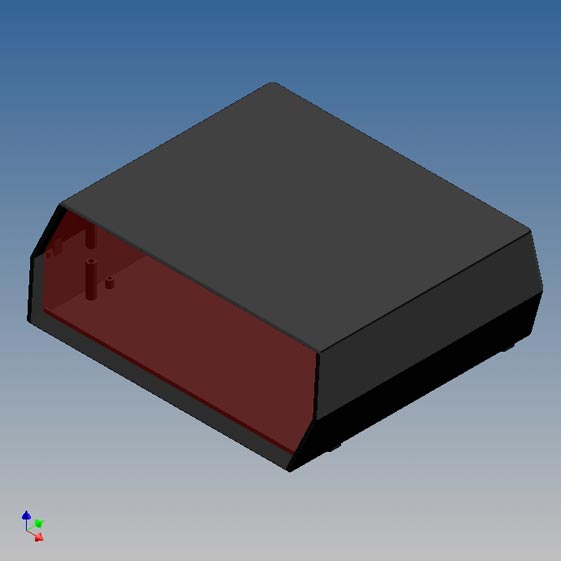

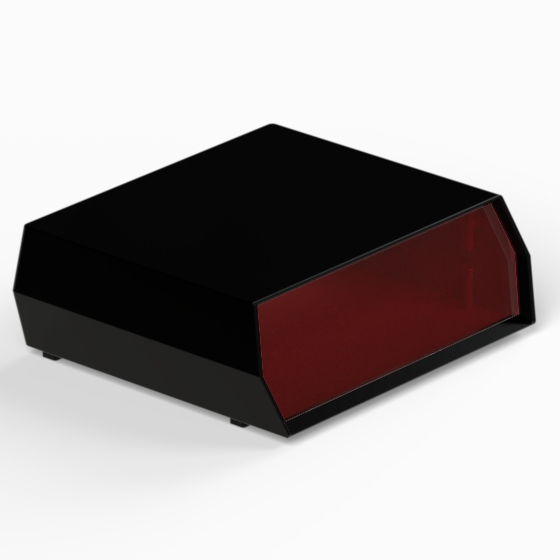

D-14.9 | 181 | 155 | 60 |
9004 |
P2H-AT | - | - | 4 | - |
PDF DWG |
12 product families, 155 series. You can't find what you're looking for? Contact us
