Description

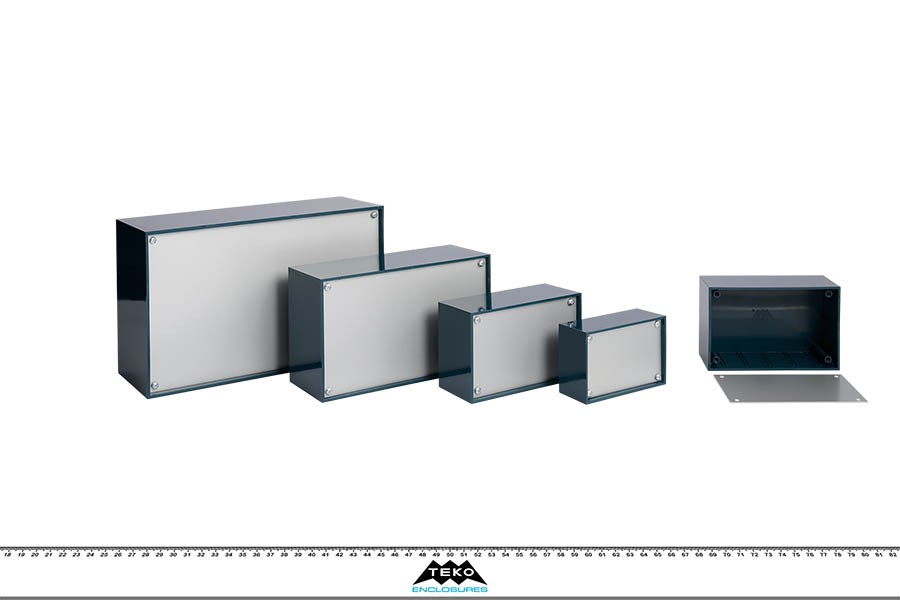

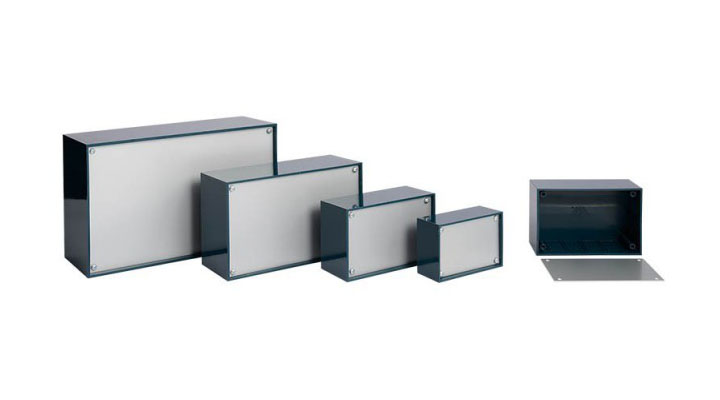

ABS enclosures featuring sharp corners and glossy-finish walls with internal PCB guides. The "P" series includes a 1 mm thick silver pre-painted aluminum closing panel.
Four-screw closure. Light grey polystyrene panels (Models PP1, PP2, PP3, and PP4) are available upon request.
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

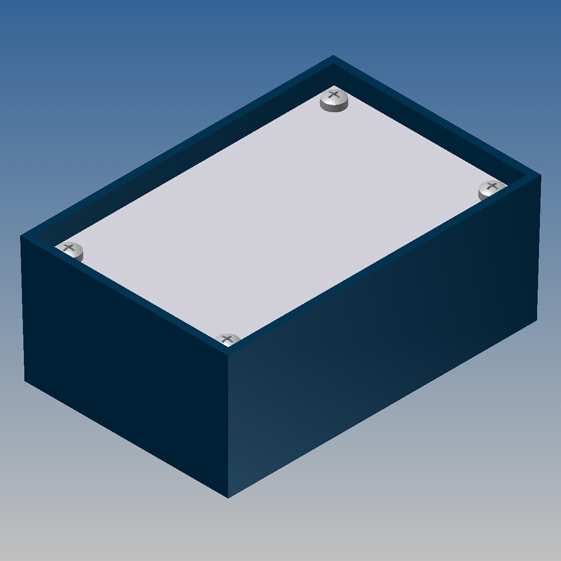

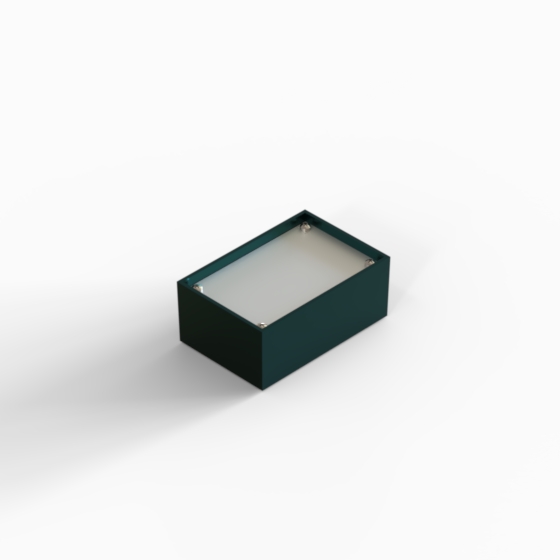

P/1.10 | 85 | 56 | 35,5 |
5020 |
RETELAN - ALLOY AW-5005 H42 | 80 | 25 | 4 | - |
PP1 |
PDF DWG |
|
|

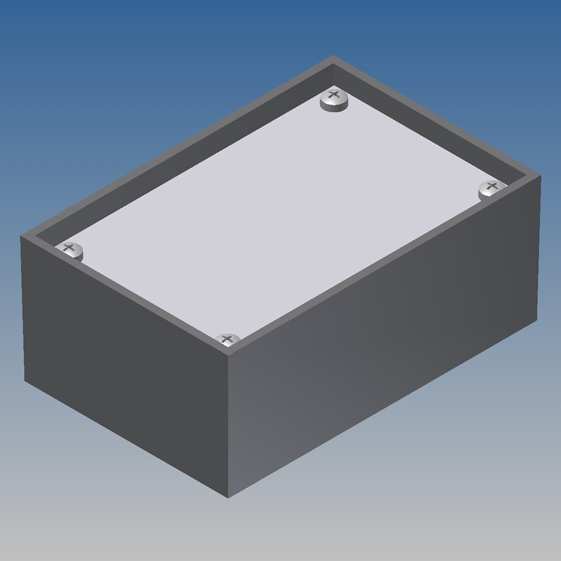

P/1.2 | 85 | 56 | 35,5 |
7012 |
RETELAN - ALLOY AW-5005 H42 | 80 | 25 | 4 | - |
PP1 |
PDF DWG |
|
|

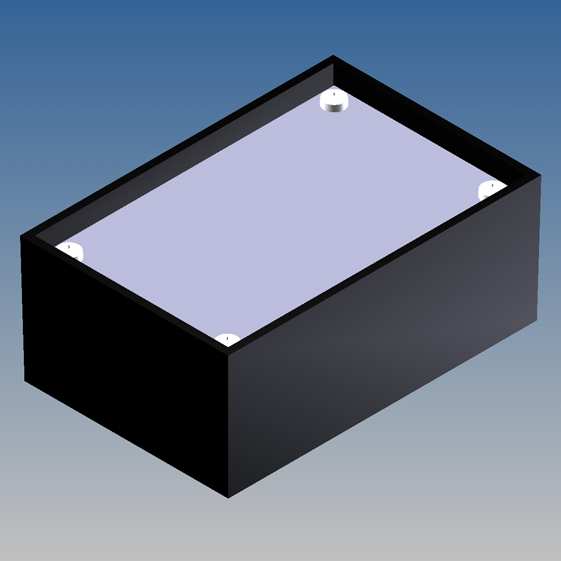

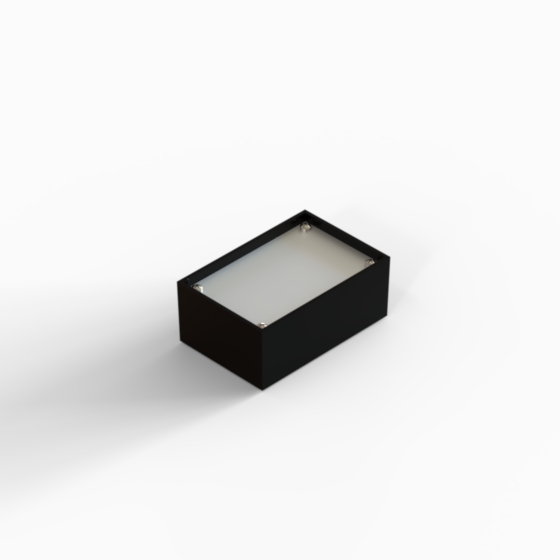

P/1.9 | 85 | 56 | 35,5 |
9004 |
ABS NOVODUR P2H-AT - ALLOY AW-5005 H42 | 80 | 25 | 4 | - |
PP1 |
PDF DWG |
View
|
|

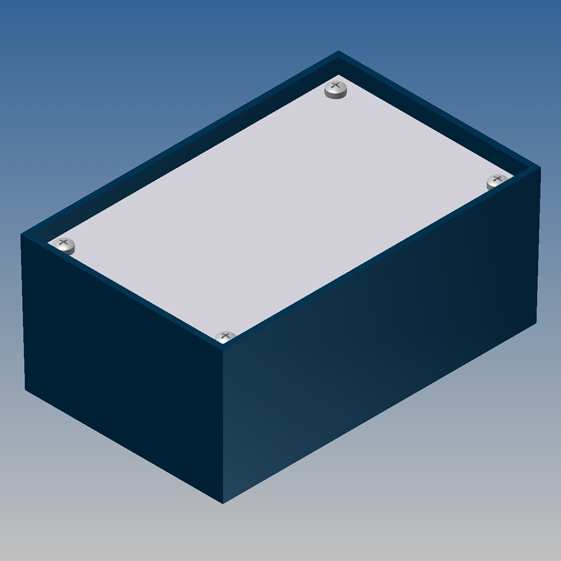

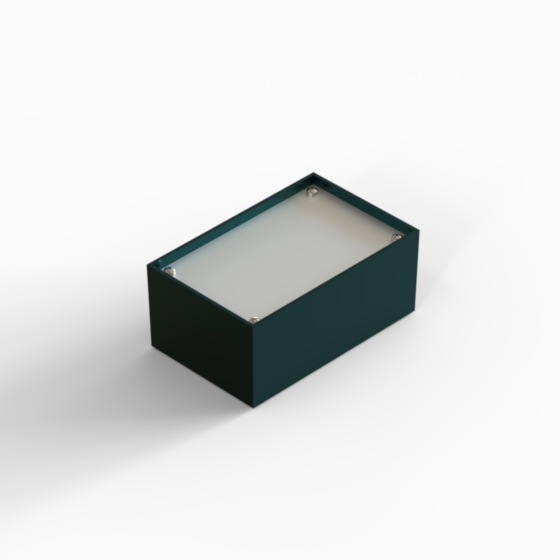

P/2.10 | 110 | 70 | 48 |
5020 |
RETELAN - ALLOY AW-5005 H42 | 103,5 | 37 | 4 | - |
PP2 |
PDF DWG |
|
|

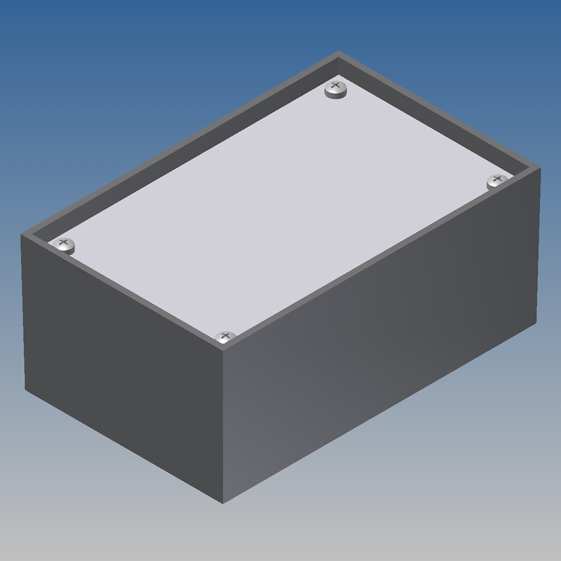

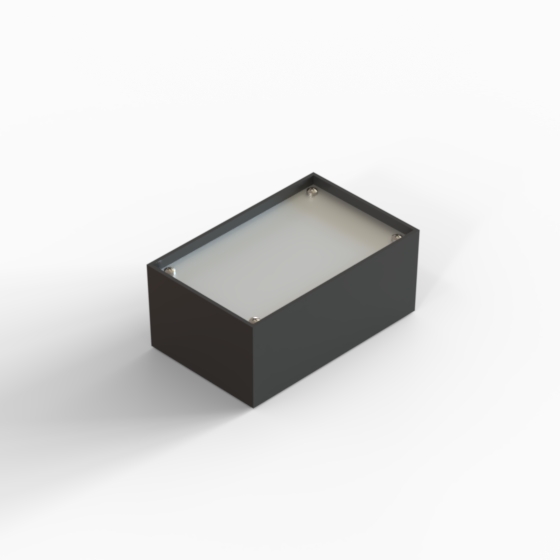

P/2.2 | 110 | 70 | 48 |
7012 |
RETELAN - ALLOY AW-5005 H42 | 103,5 | 37 | 4 | - |
PP2 |
PDF DWG |
|
|

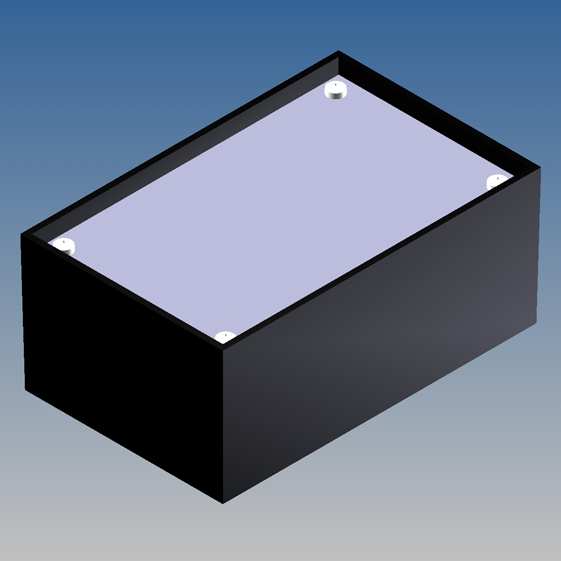

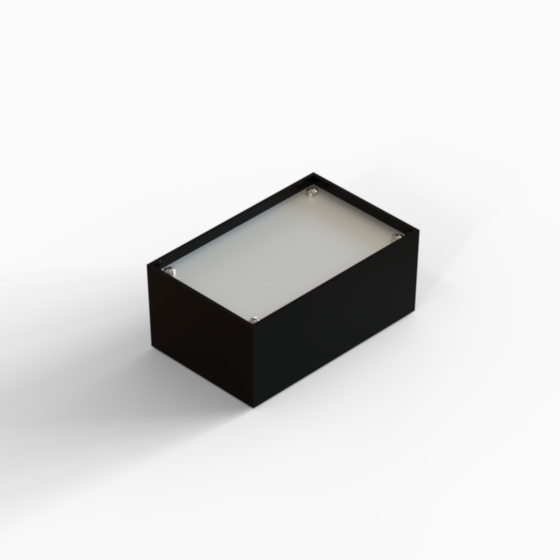

P/2.9 | 110 | 70 | 48 |
9004 |
ABS NOVODUR P2H-AT - ALLOY AW-5005 H42 | 103,5 | 37 | 4 | - |
PP2 |
PDF DWG |
View
|
|

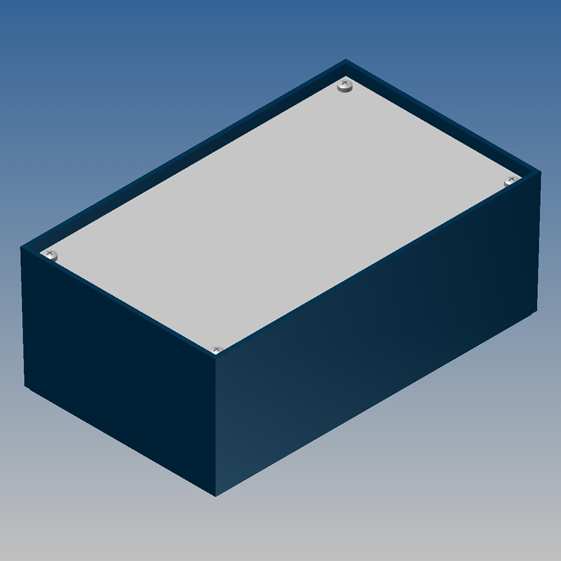

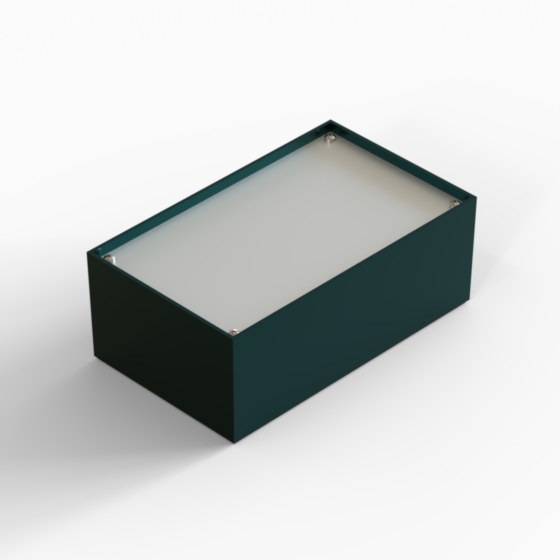

P/3.10 | 160 | 96 | 61 |
5020 |
RETELAN - ALLOY AW-5005 H42 | 154 | 49 | 4 | - |
PP3 |
PDF DWG |
|
|

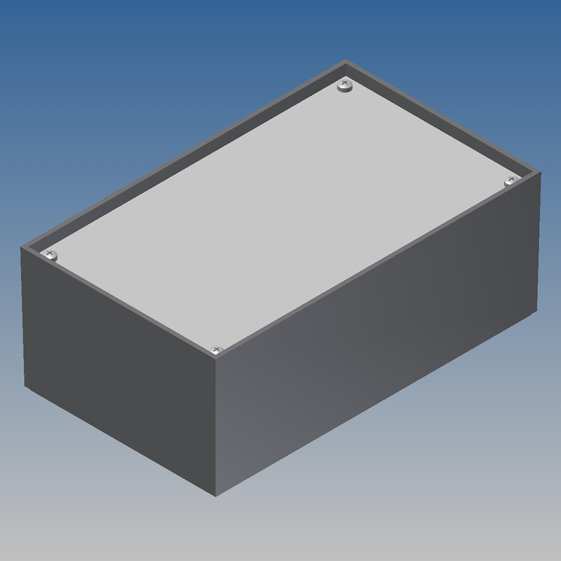

P/3.2 | 160 | 96 | 61 |
7012 |
RETELAN - ALLOY AW-5005 H42 | 154 | 49 | 4 | - |
PP3 |
PDF DWG |
|
|

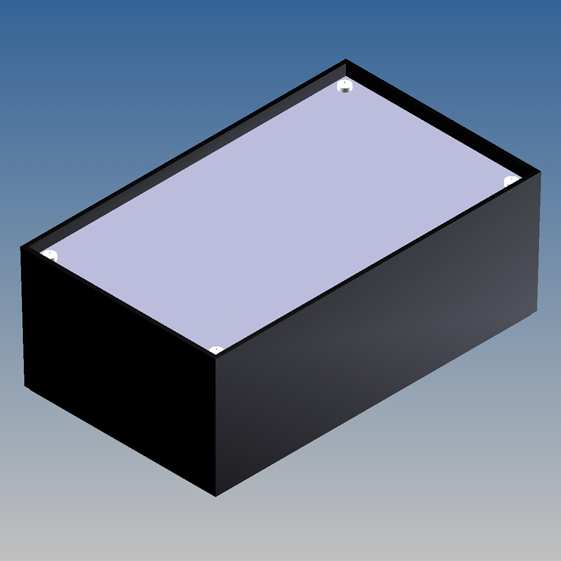

P/3.9 | 160 | 96 | 61 |
9004 |
ABS NOVODUR P2H-AT - ALLOY AW-5005 H42 | 154 | 49 | 4 | - |
PP3 |
PDF DWG |
View
|
|

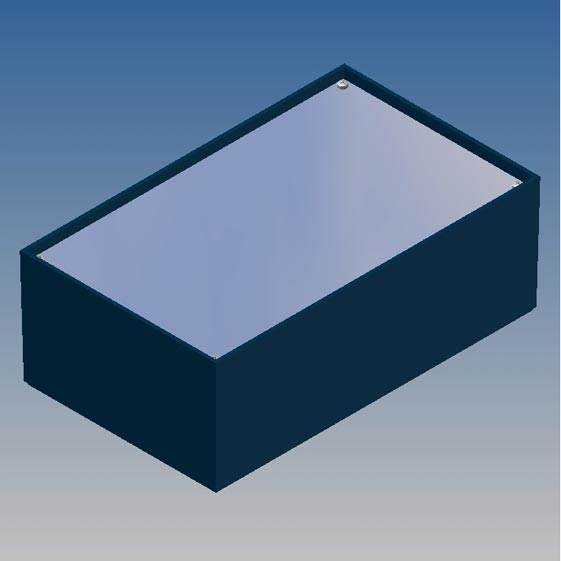

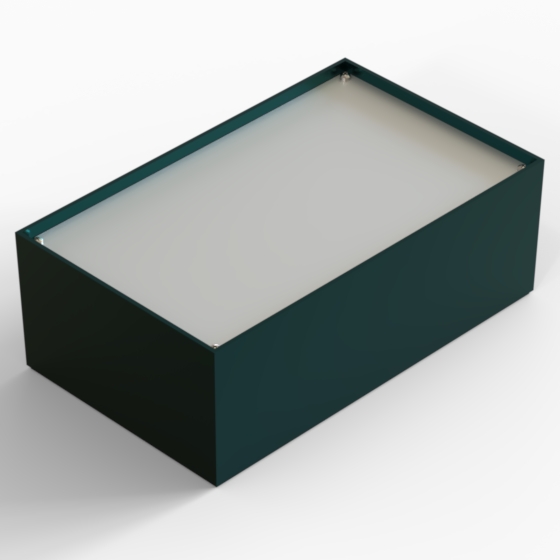

P/4.10 | 215 | 130 | 77 |
5020 |
RETELAN - ALLOY AW-5005 H42 | 208 | 64,5 | 4 | - |
PP4 |
PDF DWG |
|
|

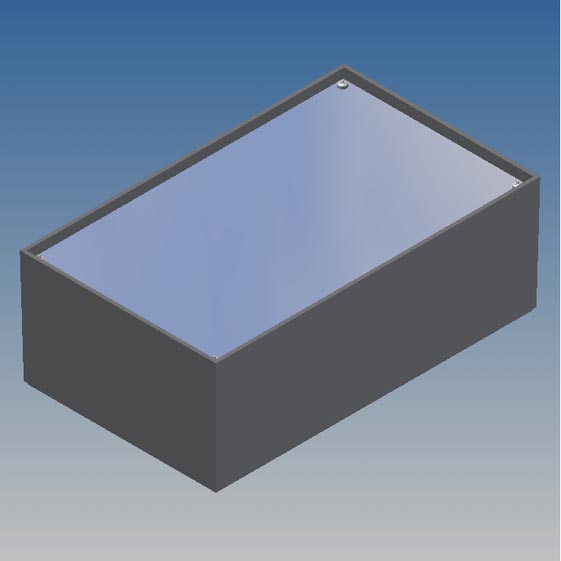

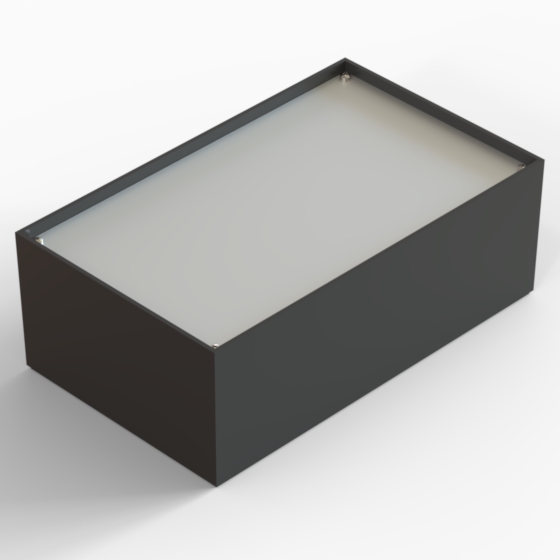

P/4.2 | 215 | 130 | 77 |
7012 |
RETELAN - ALLOY AW-5005 H42 | 208 | 64,5 | 4 | - |
PP4 |
PDF DWG |
|
|

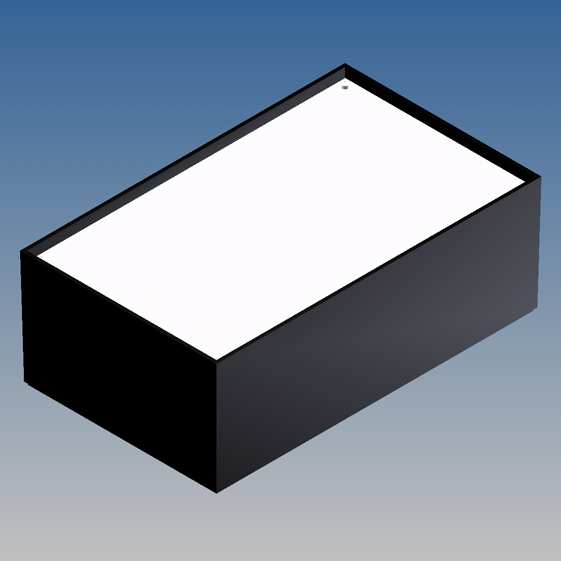

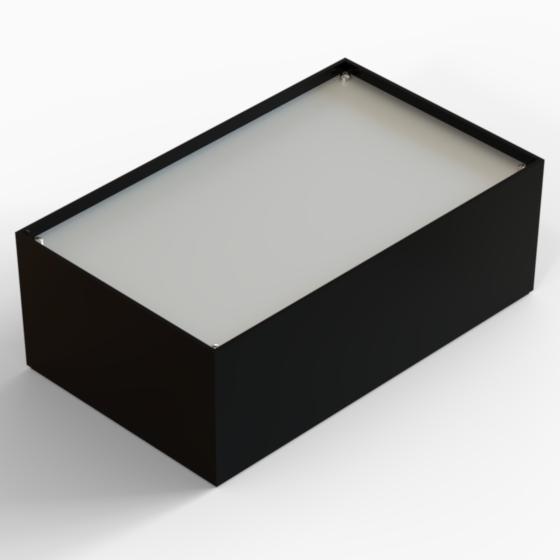

P/4.9 | 215 | 130 | 77 |
9004 |
ABS NOVODUR P2H-AT - ALLOY AW-5005 H42 | 208 | 64,5 | 4 | - |
PP4 |
PDF DWG |
View
|
