Description

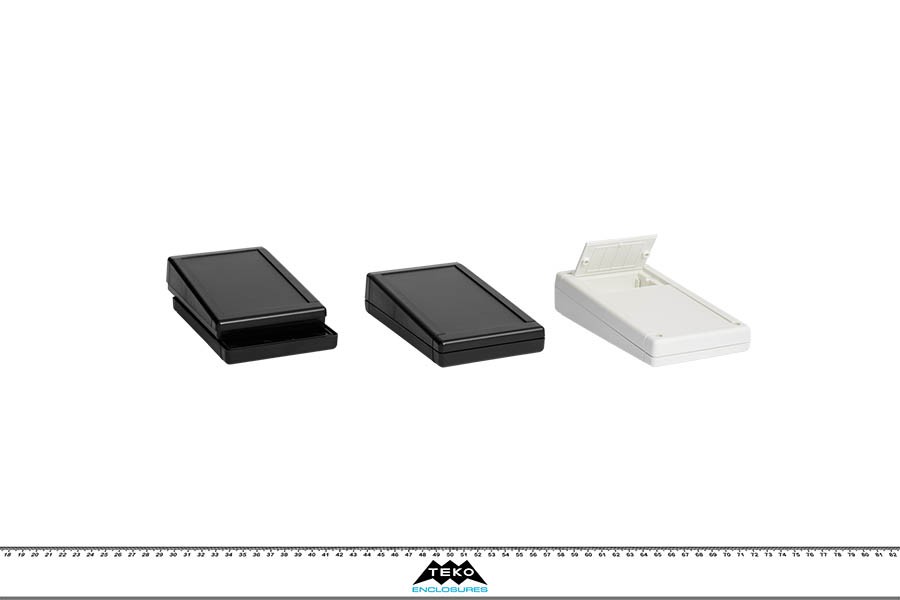

ABS enclosures with inclined cover and a recessed operating area 132 x 72 mm for membrane keyboards. Base and cover have integral PCB guides and mounting studs. Matt surface finish. Closing by four screws. Upon request ABS wall mounting tabs “MT1”.

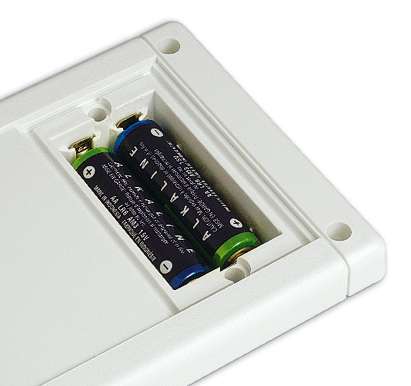

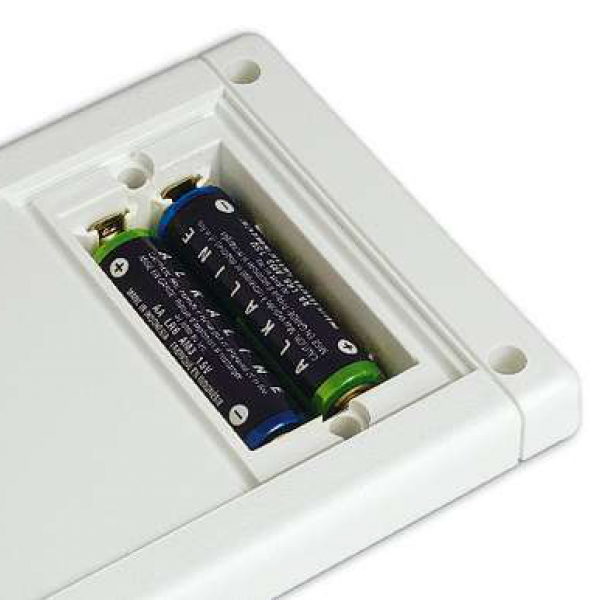

Models with "B" are equipped with a battery compartment for two "AA" batteries or one 9V battery.
Details
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

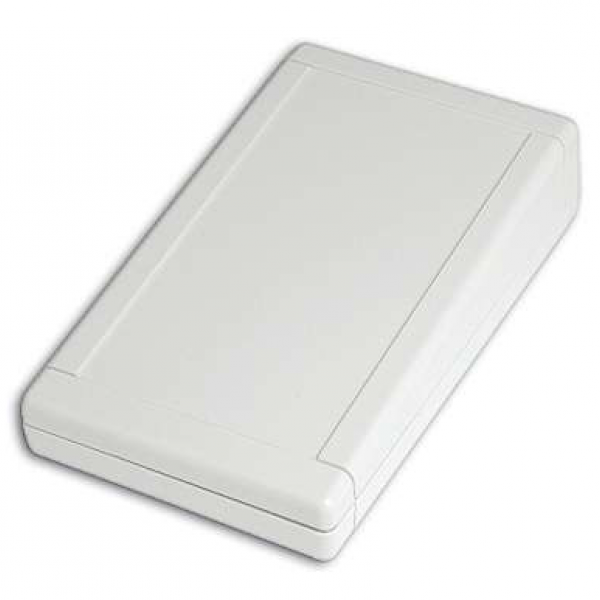

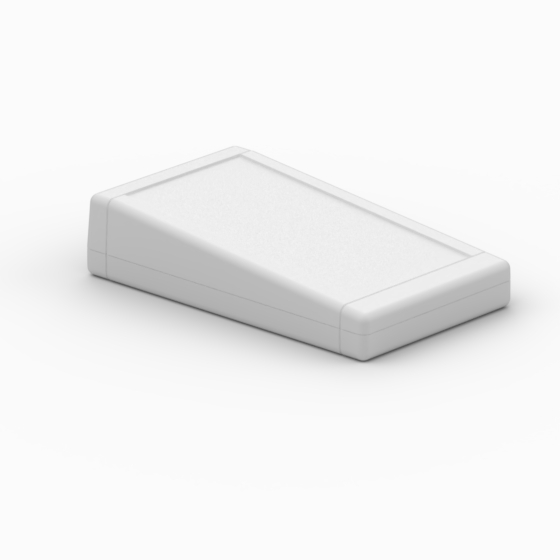

TB-1S.7 | 160 | 94 | 36,5 |
9002 |
FORMACROM 9249FC | 149 | 80 | 4 | - |
M M58 M59 MT1 |
PDF DWG |
|
|

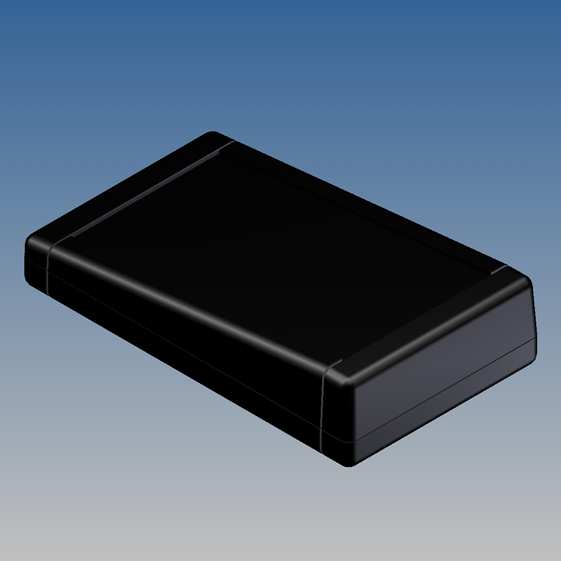

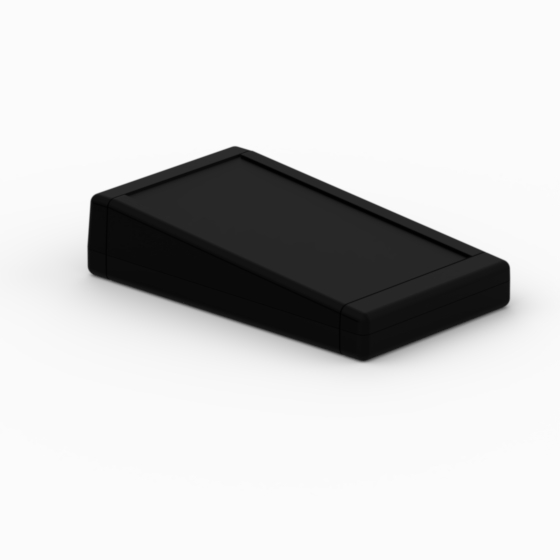

TB-1S.9 | 160 | 94 | 36,5 |
9004 |
TERLURAN GP-35 | 149 | 80 | 4 | - |
M M58 M59 MT1 |
PDF DWG |
|
|

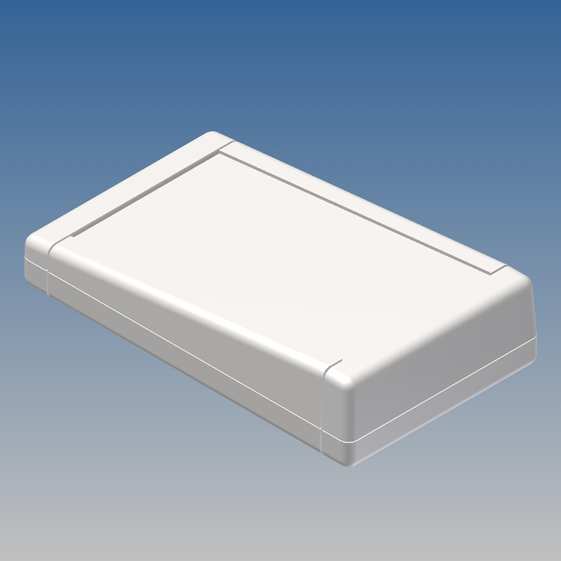

TB-1SB.7 | 160 | 94 | 36,5 |
9002 |
FORMACROM 9249FC | 98 | 80 | 4 | 2 x AA / 1 x 9V |
AB9 M M58 M59 MT1 |
PDF DWG |
|
|
TB-1SB.9 | 160 | 94 | 36,5 |
9004 |
TERLURAN GP-35 | 98 | 80 | 4 | 2 x AA / 1 x 9V |
AB9 M M58 M59 MT1 |
PDF DWG |
